Description:

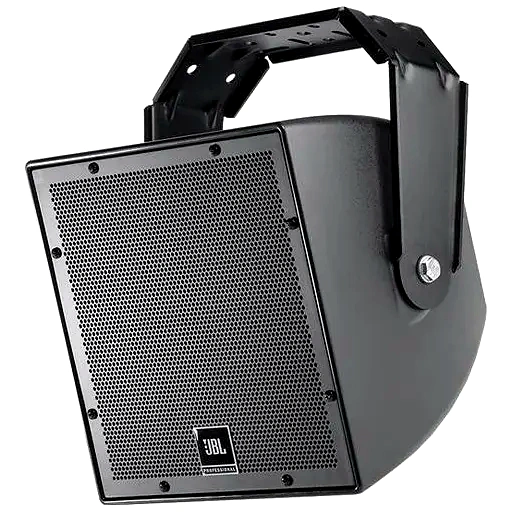

The black JBL AWC82 is a single all-weather passive coaxial loudspeaker designed for high-output, full-range sound reinforcement in various indoor and outdoor applications such as sports facilities, stadiums, fairgrounds, cruise ships, and background music/paging systems.

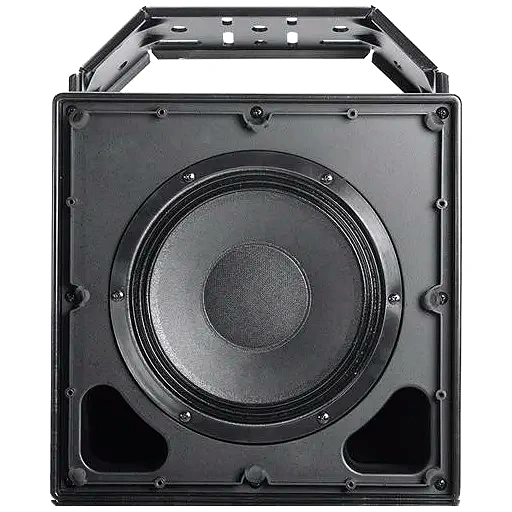

Capable of up to 250W long-term power handling, it incorporates an 8″ Kevlar-reinforced woofer and a 1″ fluid-cooled high-frequency driver to produce a high maximum peak SPL of 124 dB and a wide frequency response of 80 Hz to 20 kHz (-10 dB). The coaxial speaker configuration yields a 120 by 120° dispersion pattern for consistent coverage.

The paintable ABS enclosure boasts an IP56 rating for effective weather resistance and a sturdy steel grille backed with open-cell foam for additional protection. An integrated multi-tap transformer—configurable via a rear-panel tap selector—allows operation in 70/100V systems or 8-ohm low-impedance setups. A color-matched U-bracket is included for ease of installation.

Highly weather-resistant IP56 rating Coaxial speaker design with 8″ Kevlar-reinforced woofer and 1″ fluid-cooled high-frequency compression driver 250W power handling (average continuous pink noise) with high sensitivity provides high SPL capability Consistent 120 x 120° broadband pattern control High-slope passive crossover network for constant coverage and natural midrange Minimum audibility SonicGuard high-frequency overload protection 80 Hz to 20 kHz frequency range (-10 dB), 100 Hz to 20 kHz frequency response (±3 dB) Built-in 200W 70/100V multi-tap transformer and direct 8-ohm low-impedance transformer bypass Paintable enclosure is constructed of thick ABS and fiberglass and is heavily braced to maximize low-frequency performance Heavy-duty, weather-capable U-type mounting bracket is included
