Description
Big Thrilling Bass

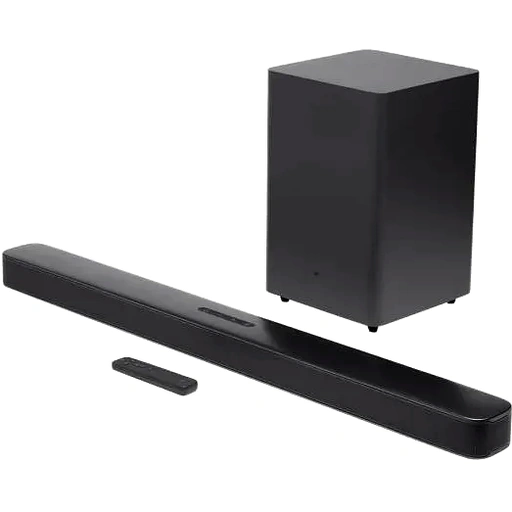

The elegant JBL BAR 2.1 Deep Bass Soundbar features Bluetooth, Optical, HDMI in and ARC connectivity with both Dolby Digital and JBL Surround Sound modes. Its room filling 300 Watts of total system power delivers an immersive experience by way of its four powerful full range drivers, two 1” tweeters, and JBL engineered 6.5” subwoofer. On-board Bluetooth allows you to use the Bar 2.1 for streaming music from your favorite device in addition to its ability to deliver a real JBL theater experience when coupled with your flat panel TV. Its elegant and low profile design will look amazing below your TV.
Specifications:
| Model | Bar 2.1 Deep Bass CNTR (Soundbar Unit), Bar 2.1 Deep Bass SUB (Subwoofer Unit) |
| Power supply | 100 – 240V AC, ~ 50/60Hz |
| Total speaker power output (Max. @THD 1%) | 300W |
| Output power (Max. @THD 1%): | 2 x 50W (Soundbar); 200W (Subwoofer) |
| Transducer | 4 x race track drivers + 2 x 1” tweeter (Soundbar); 6.5” (Subwoofer) |
| Soundbar and Subwoofer standby power | <0.5W |
| Operating temperature | 0°C – 45°C |
| HDMI Video output (With Audio return channel) | 1 |
| HDMI version | 1.4 |
| HDMI Video input | 1 |
| Frequency response | 40Hz – 20KHz |
| Audio inputs | 1 Optical, Bluetooth, USB (USB playback is available in US version. For other versions, USB is for Service only.) |
| Dimensions (W x H x D): | 965 x 58 x 85 (mm) / 38” x 2.28” x 3.35” (Soundbar); |
| 240 x 240 x 379 (mm) / 8.9” x 8.9” x 14.6” (Subwoofer) | |
| 5.67 kg (Subwoofer) | |
| Packaging dimensions (W x H x D) | 1045 x 310 x 405mm |
| Packaging weight (Gross weight) | 10.4kg |
| USB port | Type A |
| USB rating | 5V DC/ 0.5A |
| Supporting file format | mp3, wav |
| MP3 Codec | MPEG 1 Layer 2/3, MPEG 2 Layer 3, MPEG 2.5 Layer 3 |
| MP3 sampling rate | 16KHz – 48 KHz |
| MP3 bitrate | 80kbps – 320kbps |
| WAV sample rate | 16KHz – 48 KHz |
| WAV bitrate | Up to 3000kbps |
| Bluetooth profile | A2DP V1.3, AVRCP V1.5 |
| Bluetooth frequency range | 2402MHz-2480MHz |
| Bluetooth Max. transmitting power | <10dBm (EIRP) |
| Modulation Type | GFSK, π/4 DQPSK, 8DPSK |
| 5G Wireless frequency range | 5736.35 – 5820.35MHz |
| 5G Max. transmitting power | <9dBm (EIRP) |
| Modulation Type | π/4 DQPSK |
