JBL Control 19CS Overview

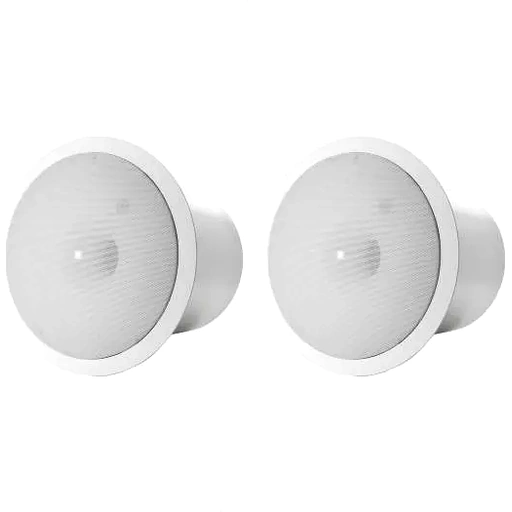

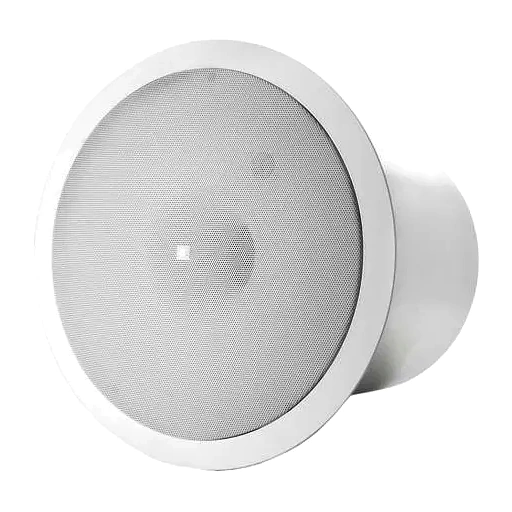

The white JBL Control 19CS is a passive 8″ in-ceiling installation subwoofer with SonicGuard overload protection circuitry designed to deliver reliable low-frequency reinforcement for foreground music systems in a variety of venues ranging from boardrooms to bistros. When driven by 8-Ohm power amplifiers (available separately), these subwoofers provide a program power capacity of 200W. Each Control 19CS is equipped with a durable 8″ polypropylene woofer capable of covering the low-frequency range from 42 to 200 Hz.

The Nested Chamber design and Linear Dynamics port yield extended bass response, high output, and sonically transparent acoustic low-pass properties. The removable locking connector, C-shaped support backing plate, tile support rails, cutout template, and paint shield contribute to easy installation.

Low-profile, in-ceiling installation subwoofers with paintable baffles and grilles Includes cutout templates and paint shields for ease of installation For use with 8-Ohm power amplifiers Ideal for reinforcing full-range speakers for foreground music systems Discreet, minimized visual impact for boardroom, reception areas, restaurants, airports, and retail applications 200W continuous program power handling performance Durable 8″ polypropylene woofer with vented pole piece for low distortion 42 to 200 Hz frequency range Nested Chamber design delivers high output from a compact enclosure, while its acoustic low-pass character enables it to augment a full-range sound system without an external crossover or separate amp channel Linear Dynamics port design, originally developed for JBL’s concert speaker systems, produces extended and deep bass output SonicGuard circuitry protects against overload damage while remaining transparent to the listener Removable locking connector with screw-down terminals for input and loop-through output connections Enclosed terminal box provides strain relief for use with plenum-rated wire, 1/2″ conduit, or flexible conduit up to 7/8″ outside diameter Back-panel attachment loop acts as a secondary support point
