Description:

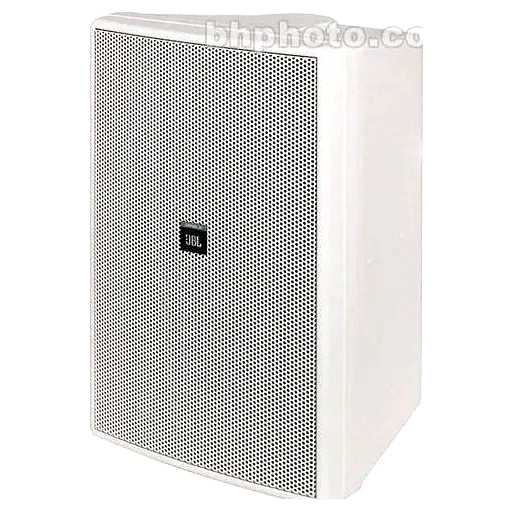

Designed for both indoor and outdoor applications, the Three-Way Control 30 is the largest of JBL’s indoor/outdoor Control Contractor-Series speakers. Ideal for theme parks, health clubs, under balcony, parks and small clubs, the Control 30 offers a variety of high-performance features including: patent-pending cabinet manufacturing techniques, a top-quality 70V/100V line-distribution transformer, a symmetrical mid/high-frequency horn which allows for vertical or horizontal mounting.

Weather protection is maximized using the WeatherMax multi-layer foam grille which prevents water incursion, nickel-zinc rust-resistant terminals, a fiberglass and Kevlar composite woofer cone, a pure titanium high-frequency horn driver, and pure butyl rubber cone surround. Additionally, the compact design and ease of mounting using the InvisiBall install system make the Control 30 ideal for low-profile under-balcony installs. InvisiBall adds the benefit of vertical rotation of up to 37° off-axis and horizontal rotation of up to 44° off-axis and all adjustments are made from behind the logo badge without having to remove the grille.

500 Watts power capability 150 Watt transformer for 70V or 100V lines, with 4-Ohm thru. Fully outdoor-capable design, featuring WeatherMax 10″ (250mm) fiberglass/Kevlar cone LF woofer, with neodymium magnet coaxial 5″ (125mm) anodized aluminum cone MR, and 1″ (25mm) titanium diaphragm compression driver. Includes InvisiBall mounting hardware, plus ten 6 mm attachment points for suspension and optional U-bracket Outdoor-rated, sealed input-panel cover and screw-down input terminals SonicGuard overload protection 120 x 110° HF coverage Extended bandwidth, extremely smooth frequency response.
