Description:

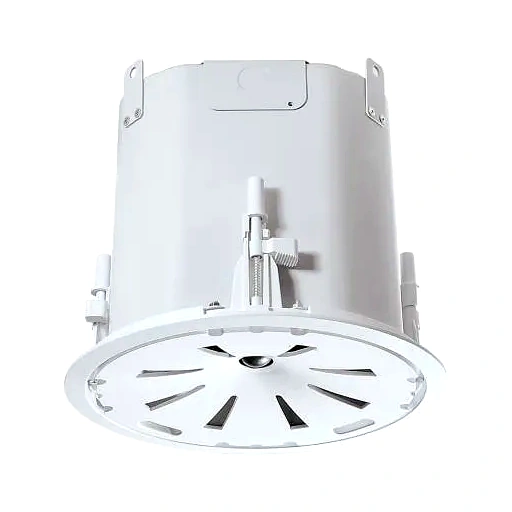

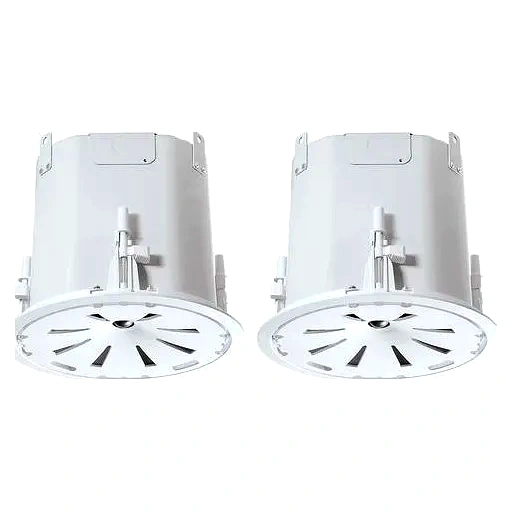

The white JBL Control 47C/T is a passive 6.5″ coaxial ceiling loudspeaker with a multi-tap transformer designed for voice amplification and foreground music reproduction in a variety of venues ranging from boardrooms to bistros. The 60W transformer allows the Control 47C/T to be driven by 70V, 100V, or 8-Ohm power amplifiers (available separately). Each Control 47C/T is equipped with a durable 6.5″ polypropylene woofer and a 1″ soft dome tweeter, yielding a frequency response of 75 Hz to 17 kHz, and a continuous program power capacity of 150W. Removable locking input connectors, detachable grilles, cutout templates, paint shields, and C-ring / tile rail suspension systems contribute to easy installation.

In-ceiling coaxial loudspeakers with integrated backcans Includes grilles and C-ring / tile rail suspension systems Consistent 120° broadband pattern control featuring JBL’s conical Radiation Boundary Integrator (RBI) technology Multi-tap transformer enables use with 70V/100V constant-voltage systems, and offers a bypass position for use in an 8-Ohm setup 150W continuous program power handling Durable 6.5″ woofer with polypropylene cone and butyl surround 1″ soft dome tweeter with internal damping and ferrofluid cooling 75 Hz to 17 kHz frequency response (±3 dB), 55 Hz to 20 kHz frequency range (-10 dB) Removable locking 2-pin input connectors Includes installation accessories
