Description

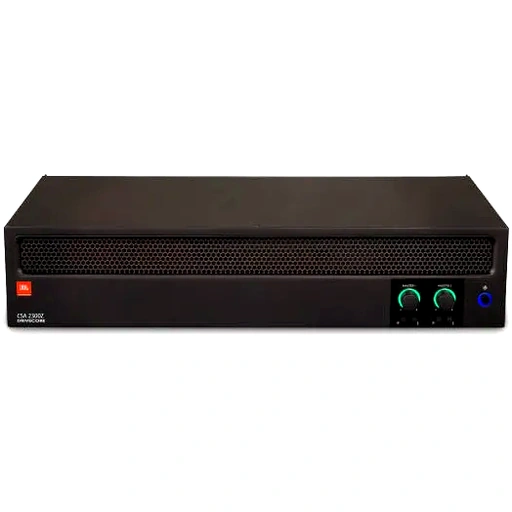

CSA 2300Z

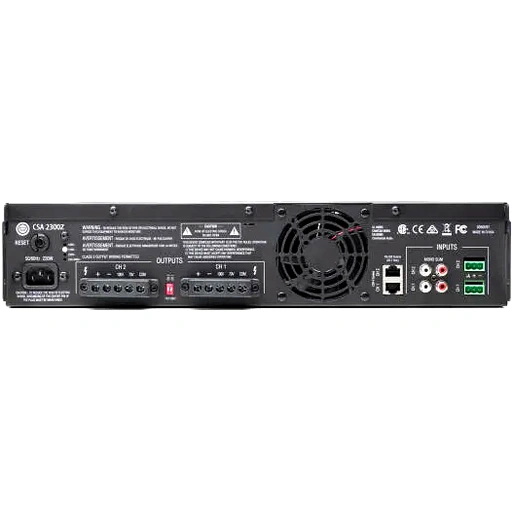

Built for installed sound applications, the CSA 2300Z Dual-Channel 300W Amplifier from JBL delivers powerful sound and efficient performance using the Crown’s DriveCore commercial power amplifier technology. Simple to configure, this amplifier provides a DriveCore-based sound solution, which utilizes one small chip that significantly reduces the part count and increases reliability while still maintaining high performance. It provides amplification with a choice of low impedance, 70V or 100V outputs. The amp includes a rack mounting kit for installations to a cabinet, and a RJ45 connector for an optional remote volume control using JBL’s CSR-V control module.
Specifications
| Rated Power into 4Ω or 8Ω, 1kHz, ≤0.5% THD | 300W × 2 |
| Number of Output Channels | 2 |
| Insertion Loss (70V & 100V outputs) | 1 dB maximum |
| Input Sensitivity (8Ω Load) | Balanced line: 775mV RCA Mono Sum: 300mV |
| Frequency Response (8Ω, 20Hz–20kHz, flat) | ±1.0 dB |
| Total Harmonic Distortion (THD) | <0.5% |
| Signal-to-Noise Ratio (A-weighted, 22kHz BW) | >97 dB |
| Input Impedance (nominal) | Euro Block: 20 kΩ (balanced) RCA: 10 kΩ |
| Maximum Input Level | +22 dBu |
| Crosstalk (A-weighted, 1kHz) | <–70 dB |
| Tone Controls | Bass ±12 dB @100Hz Treble ±12 dB @10kHz |
| Nominal AC Line Voltages | 100V, 120V, 220V, 230–240V, 50/60 Hz |
| Minimum Load Impedance (Low-Z Output) | 4Ω |
| Minimum Load Impedance (70V Output) | 12Ω |
| Minimum Load Impedance (100V Output) | 24Ω |
| Operating Temp/Humidity | 0°C to 35°C, 95% R.H. (non-condensing) |
| Storage Temperature | –20°C to 85°C |
| Dimensions | Width: 17.0 in (432 mm) Depth: 10.8 in (274 mm) Height: 3.5 in (89 mm) |
| Net Weight | 17.8 lb (8.05 kg) |
| Shipping Weight | 20.6 lb (9.35 kg) |
