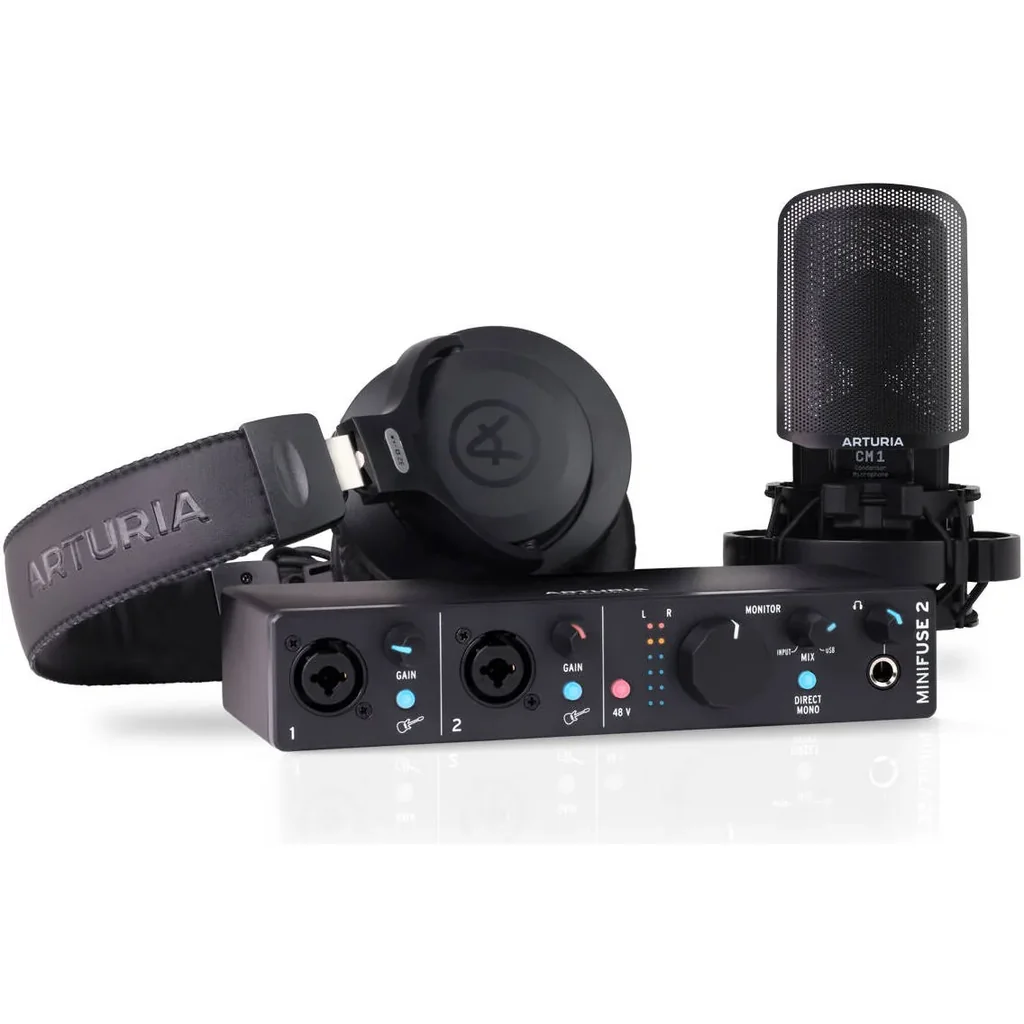

Record your voice, guitar, piano, synth, or any audio, and create great-sounding tracks with a plug-and-play bundle that does it all. For beginners, songwriters, content creators, and everyone in between, the MiniFuse Recording Pack gives you professional sound in a simple, fun, creative package – whatever your style.

Your recording all-in-one
Whether you’re a beginner music maker, a content creator, a producer with limited space, or a musician on a budget, enjoy a pro-grade recording bundle for vocals, guitars, per- cussion, and more – without breaking the bank.

Plug-and-play interface
MiniFuse 2 gives you 2 audio inputs & outputs, MIDI for connecting synths & drum ma- chines, and easy to use controls that work right out the box. Recording has never been so easy.

Make your voice heard

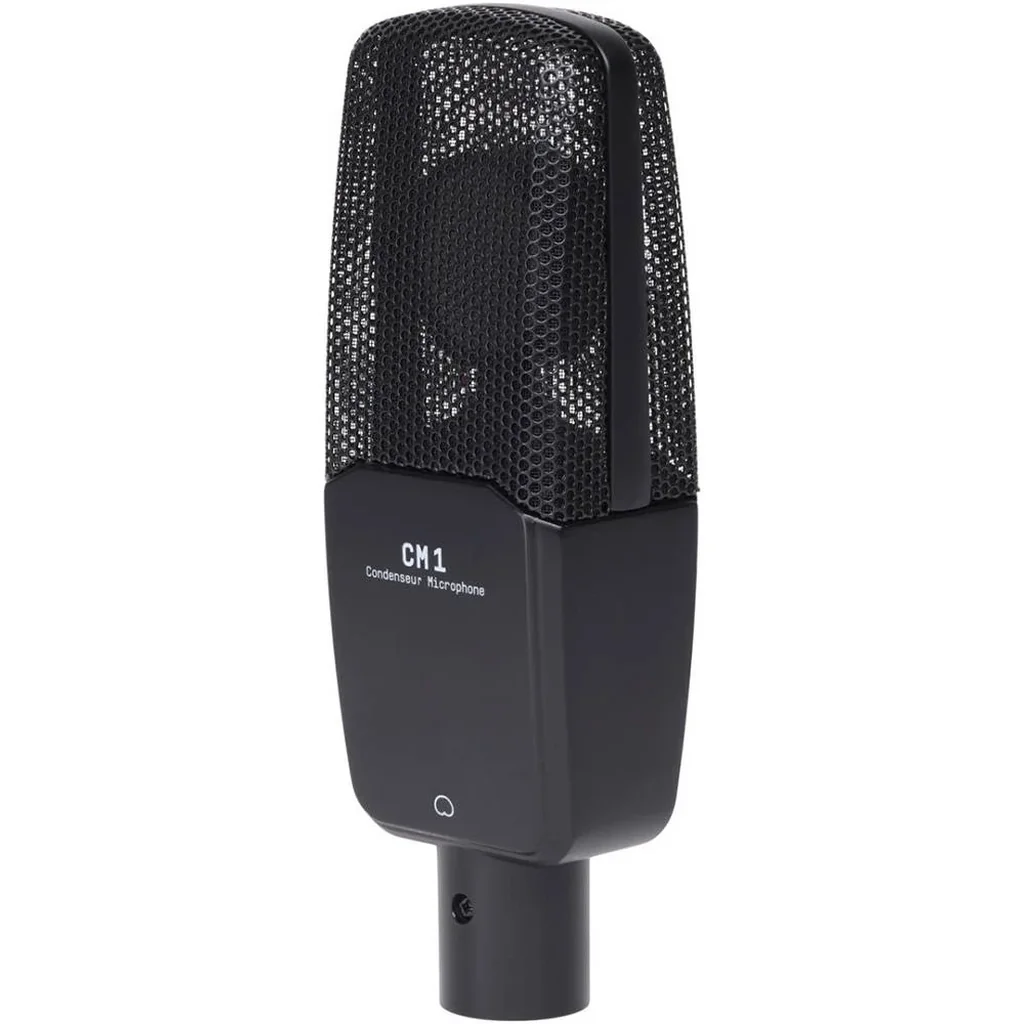

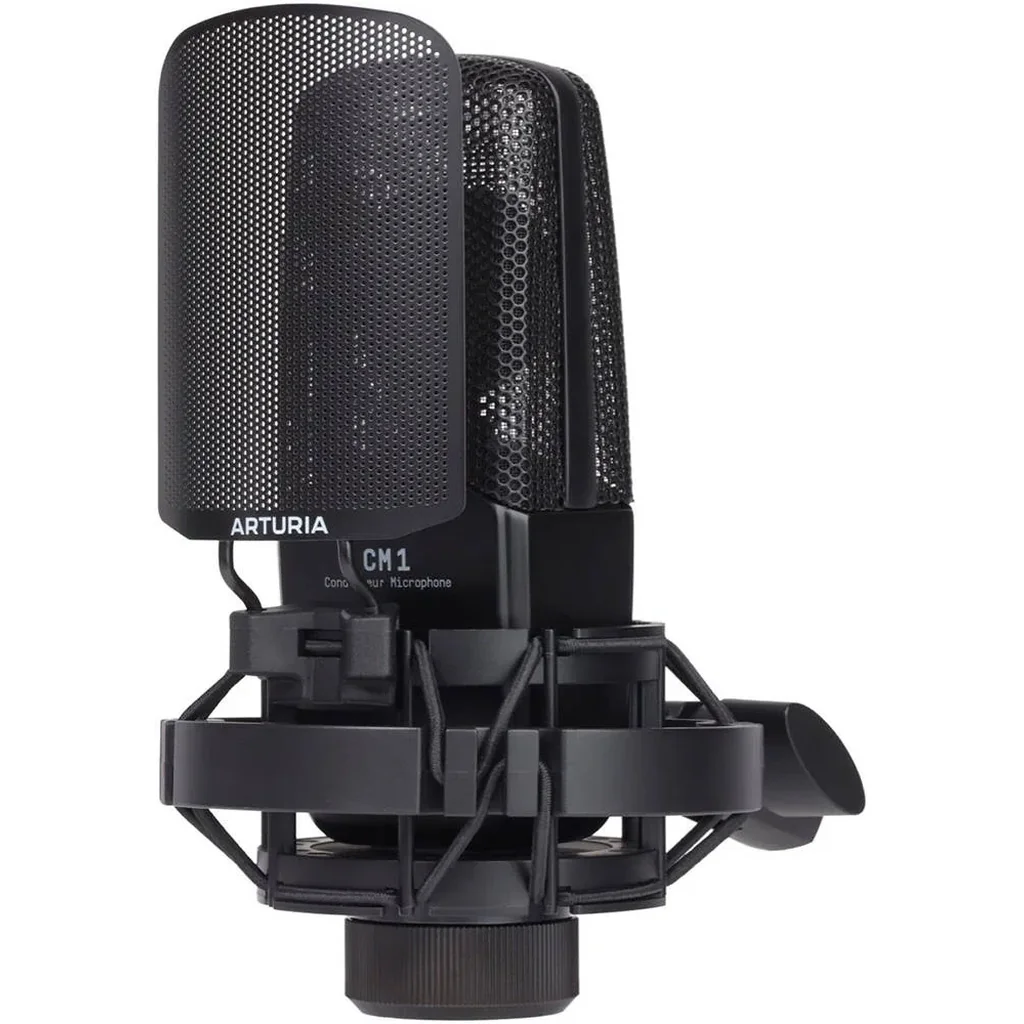

Capture your voice & instruments with supreme clarity without hassle. Follow the included step-by-step guide to connect your CM1 cardioid microphone and get recording – it even comes with a shockmount & pop filter to keep your recordings clean & noise-free.

Hear your sound come to life

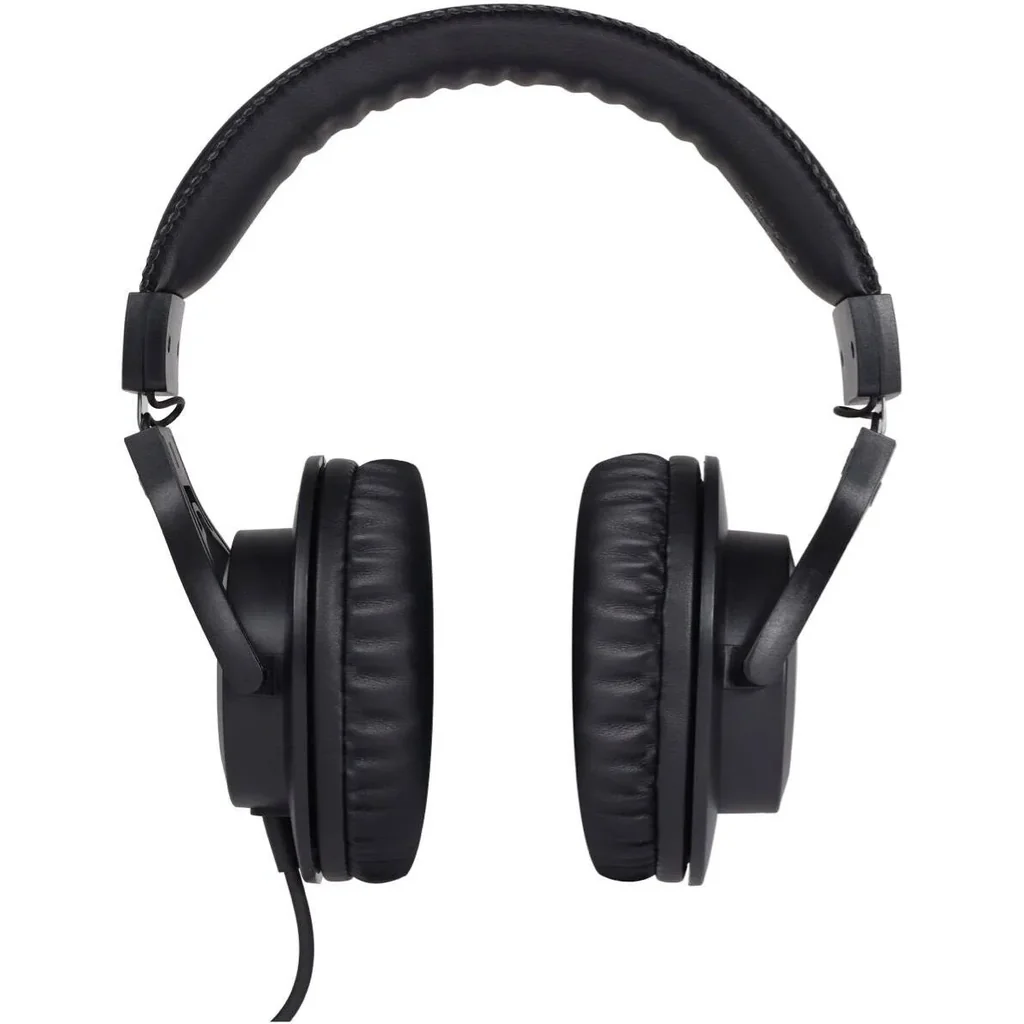

Monitor your mix in studio-grade detail and comfortably smash out long sessions with the included EF1 closed-back monitoring headphones, great for production, live recording, and even just listening at home or on the move.

DAW music creation, your own way
Enjoy the most versatile & inspiring software bundle at this price point. From an introduc- tion to an industry-standard DAW to a range of creative effects and audio enhancing tools, take your production to another level.

Specifications

• Microphone
  • Capsule: Condenser (Cardoid)
  • Sensitivity: -36 dB ?3 dB (0 dB = 1 V/Pa at 1 kHz)
  • Frequency response: 20 Hz to 20 kHz
  • Impedance: 110 ? +/-30% (at 1 kHz)
  • Recommended load impedance: > 1k?
  • Equivalent noise level:
  • Signal to Noise Ratio: 74 dB
  • Max SPL: 130dB
  • Power Requirement: 48V Phantom Supply
  • Current: 3.2mA
• Headphones
  • Type: closed back
  • Drive diameter: 40mm
  • Impedance: 32?
  • Sensitivity: 99dB +/- 3dB
  • Frequency response: 10 Hz to 20 kHz
  • Max rated power: 1.2W
  • Cord length: 3m
  • Weight: 260g with cable
• MiniFuse 2 Black
  • 2 tickets
  • 2x outlets
  • 1 headset
  • 1 MIDI I/O
• line inputs
  • Input impedance: 16k?
  • Maximum input level: +22dBu
  • Gain range: 56dB
  • Frequency response 20 Hz to 20 kHz: +/-0.05 dB (minimum gain)
  • Dynamic Range: 110dB typical (A-weighted)
  • THD+N at 1kHz: -100dB typical (unweighted)
• instrument input
  • Input impedance: 1M? at tip
  • Maximum input level: +11.5dBu
  • Gain range: 56dB
  • Frequency response 20 Hz to 20 kHz: +/-0.06 dB (minimum gain)
  • Dynamic Range: 110dB typical (A-weighted)
  • THD+N at 1kHz: -91dB typical (unweighted)
• Mic Preamps
  • Input impedance: 2.5k?
  • Maximum input level: +9dBu
  • Gain range: 56dB
  • Equivalent Input Noise (EIN): -129dB typical (A-weighted)
  • Frequency response 20 Hz to 20 kHz: +/-0.06 dB (minimum gain)
  • Dynamic Range: 110dB typical (A-weighted)
  • THD+N at 1kHz: -100dB typical (unweighted)
• Speakers
  • Output impedance: 94?
  • Maximum output level: +12dBu
  • Frequency response 20-20kHz: +/-0.09dB
  • Dynamic Range: 107.5 dB typical (A-weighted)
  • THD+N @ 1kHz: -101dB typical (unweighted)
• Headphones
  • Output impedance: 10?
  • Maximum output level: +11.4dBu
  • Frequency response 20-20kHz: +/-0.09dB
  • Dynamic Range: 104dB typical (A-weighted)
  • Power at 33 ohms: 137 mW
• Sample Rates Supported
  • 44.1kHz, – 48kHz, – 88.2kHz,
  • 96kHz, – 176.4kHz, – 192kHz
• System Requirements
  • windows
    • Windows 10+ (64-bit)
    • 2.5GHz CPU
    • 4GB RAM
    • 2 GB of free hard disk space
    • OpenGL 2.0 compatible GPU
  • Manzana
    • macOS 10.13+
    • 2.5 GHz or Apple Silicon CPU
    • 4GB RAM
    • 2 GB of free hard disk space
    • OpenGL 2.0 compatible GPU
