Description

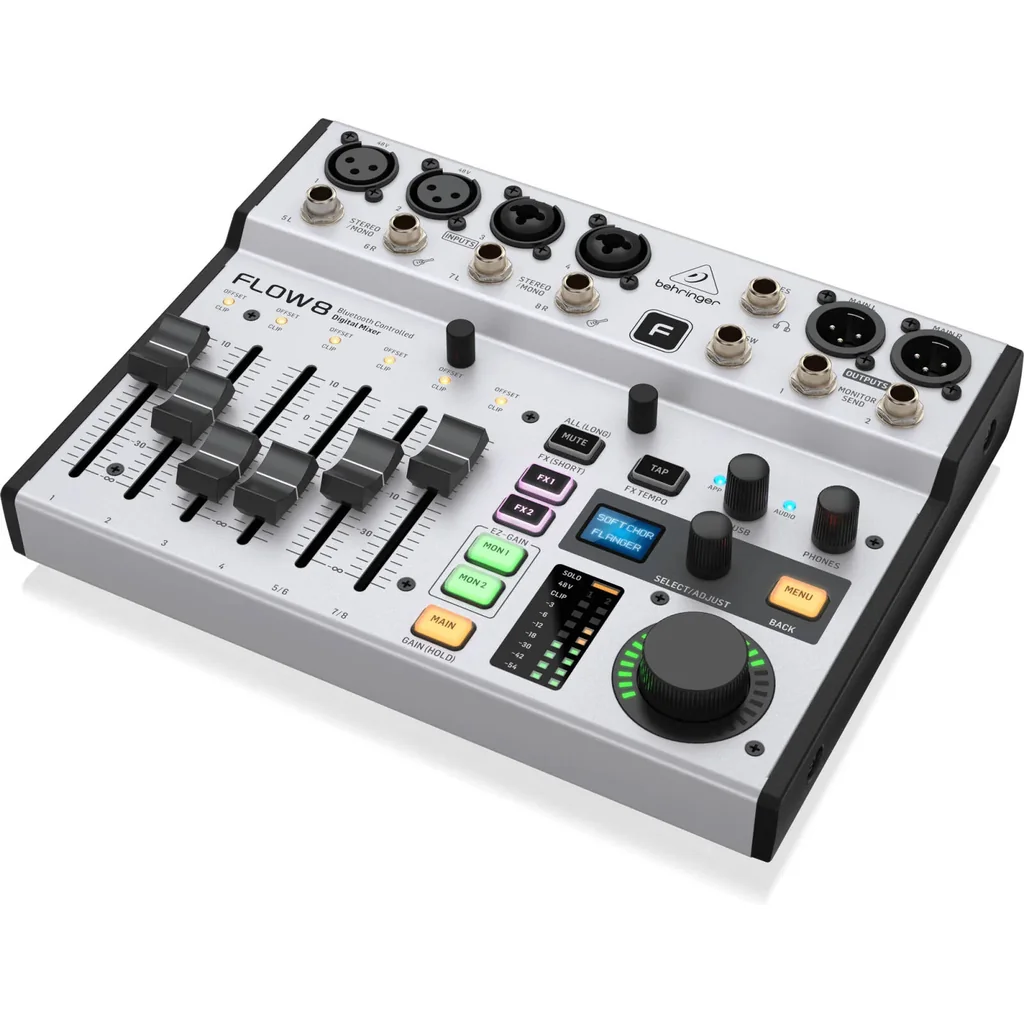

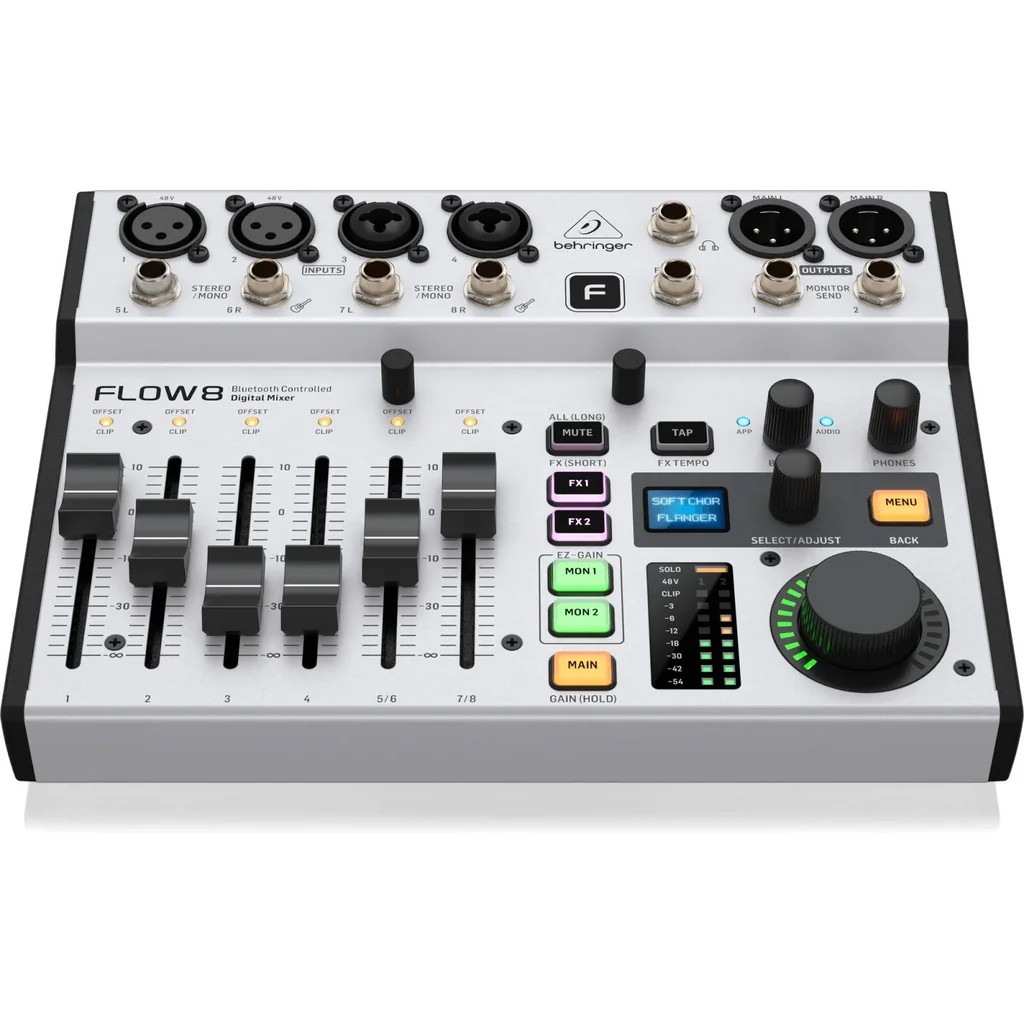

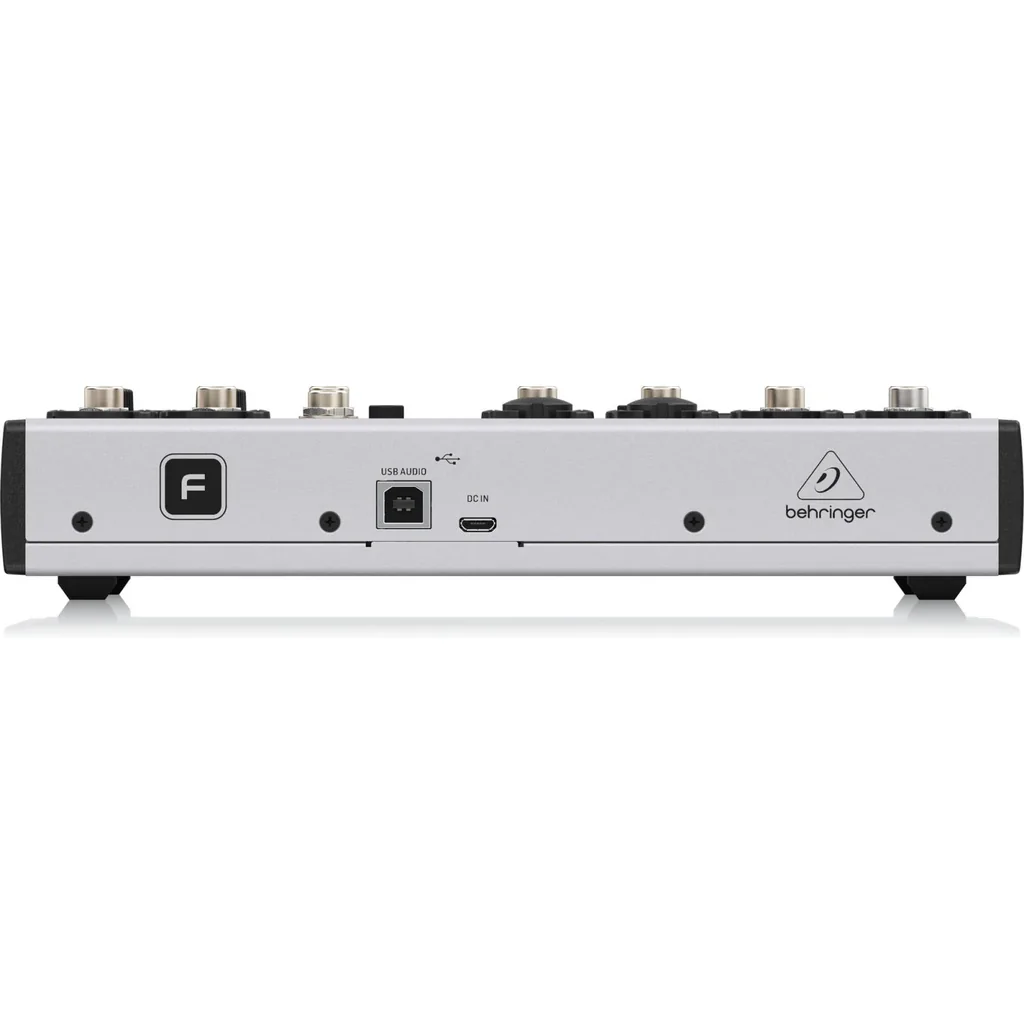

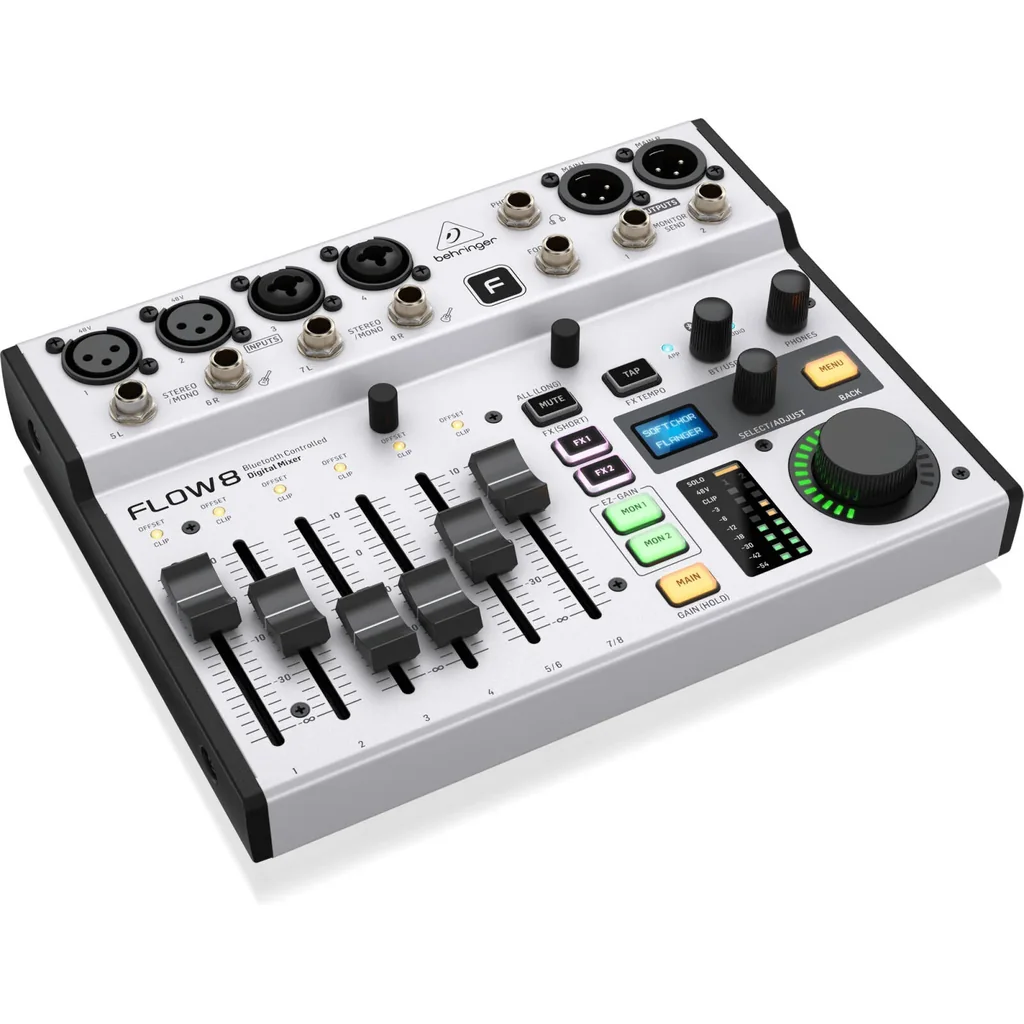

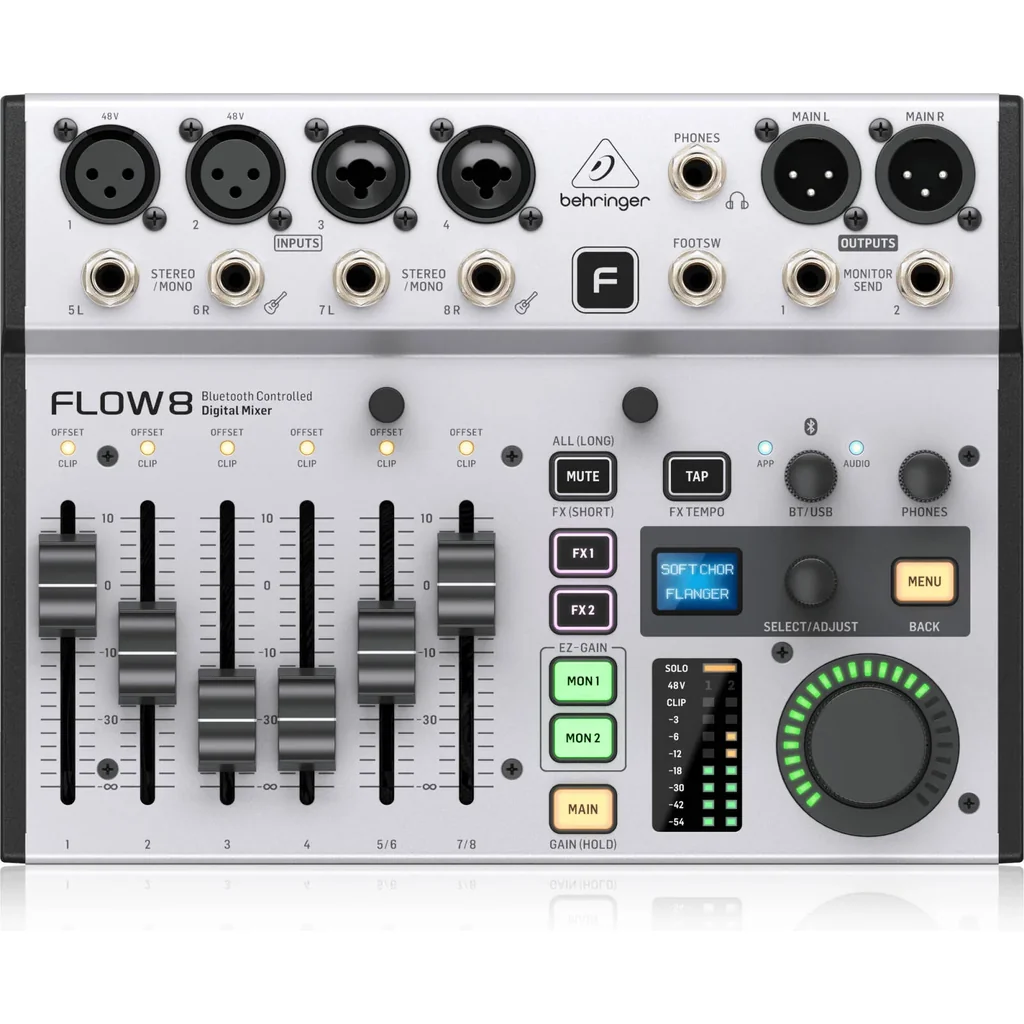

Flow 8
Digital Mixing with Ease
Digital mixers offer studio-quality processing, the highest fidelity, the ability to recall all settings and even remote operation. Those are hugely attractive features, but they all come at a cost-with bigger physical size and more complex operation requiring at least some degree of technical audio education.
The millions of analog small-format mixers that Behringer has built over the years clearly tell us that there are many users who need a mixer that is compact, affordable, dependable, and easy to operate.
Typical applications very often just need to balance the level of a handful of sources. So, why make things more complicated than they need to be? It is time for something genuinely new, providing modern features and workflows to everyone in a simple and compact form-it is time for FLOW 8 digital mixing.
Specifications
| Mic Inputs 1 / 2 | Type: 2 ? XLR jacks, balanced |
| Mic E.I.N. (20 Hz-20 kHz): -129 dBu, A-weighted | |
| Distortion (THD+N): | |
| Max. input level: +20 dBu | |
| Impedance: 10 k? balanced, 5 k? unbalanced | |
| Mic Inputs 3 / 4 | Type: 2 ? XLR / 1/4″ TRS combo jacks, balanced |
| Mic E.I.N. (20 Hz-20 kHz): -117 dBu, A-weighted | |
| Distortion (THD+N): | |
| Max. input level: XLR +6 dBu / TRS +26 dBu | |
| Impedance: XLR 2 k? balanced, 1 k? unbalanced / TRS 20 k? balanced, 10 k? unbalanced | |
| Gain range: -20 dB to +60 dB | |
| Phantom power: +48 V, switchable (inputs 1/2 only) | |
| Line Inputs | Type: 2 ? 1/4″ TRS jacks, balanced (ch. 5L / 7L) |
| Impedance: 20 k? balanced, 10 k? unbalanced | |
| Gain range: -20 dB to +60 dB | |
| Distortion (THD+N): 0.005%, A-weighted (0 dB gain, 0 dBu out) | |
| Max. input level: +22 dBu | |
| Guitar (Hi-Z) Inputs | Type: 2 ? 1/4″ TRS jacks, balanced (ch. 6R / 8R) |
| Impedance: 2 M? balanced, 1 M? unbalanced | |
| Distortion (THD+N): 0.005%, A-weighted (0 dB gain, 0 dBu out) | |
| Max. input level: +19 dBu | |
| Channel EQ | Low: ?15 dB @ 20 Hz, shelving |
| Low Mid: ?15 dB @ 300 Hz | |
| High Mid: ?15 dB @ 1.5 kHz | |
| High: ?15 dB @ 20 kHz, shelving | |
| Monitor Outputs | Type: 2 ? 1/4″ TRS jacks, balanced |
| Impedance: 75 ? balanced | |
| Max. output level: +14 dBu | |
| Main Outputs | Type: 2 ? XLR jacks, balanced |
| Impedance: 150 ? balanced | |
| Max. output level: +14 dBu | |
| Phones Output | Type: 1 ? 1/4″ TRS jack, stereo |
| Max. output level: +18 dBm / 40 ? | |
| Footswitch Input | Type: 1 ? 1/4″ TRS jack (tip/ring normally open) |
| Function configurable: FX mute / Tap tempo / Snapshot load next-previous | |
| Input / Output & Processing | Frequency range: 10 Hz-22 kHz (+0/-1 dB) |
| Dynamic range (analog in ? out): Typ. 108 dB | |
| I/O latency: 0.6 ms | |
| Signal processing: 32-bit VFP (Vector Floating Point) | |
| A/D-D/A conversion: 24-bit / 48 kHz | |
| Dynamic range: 114 dB | |
| Input processing channels: 10 input, 4 FX return | |
| USB Audio Interface | Type: USB 2.0 |
| Connector: Type B | |
| Bit depth: 24-bit / 48 kHz | |
| Channels: 10 out / 2 in | |
| Bluetooth | Frequency range: 2402-2480 MHz |
| Channel number: 79 | |
| Version: Bluetooth 4.0 compliant | |
| Compatibility: A2DP 1.2 profile | |
| Max. communication range: 12 m (no interference) | |
| Max. output power: 8 dBm | |
| Power Supply / Voltage | Connector: Micro-USB |
| Power: 5 VDC 2A | |
| Power consumption: Max. 10 W (typ. 5 W) | |
| Dimensions / Weight | Size (H?W?D): 48 ? 229 ? 172 mm (1.9 ? 9.0 ? 6.8″) |
| Weight: 1.4 kg (3.1 lbs) |
