Description
DUOFACE PRO RGB
The Rule of Two

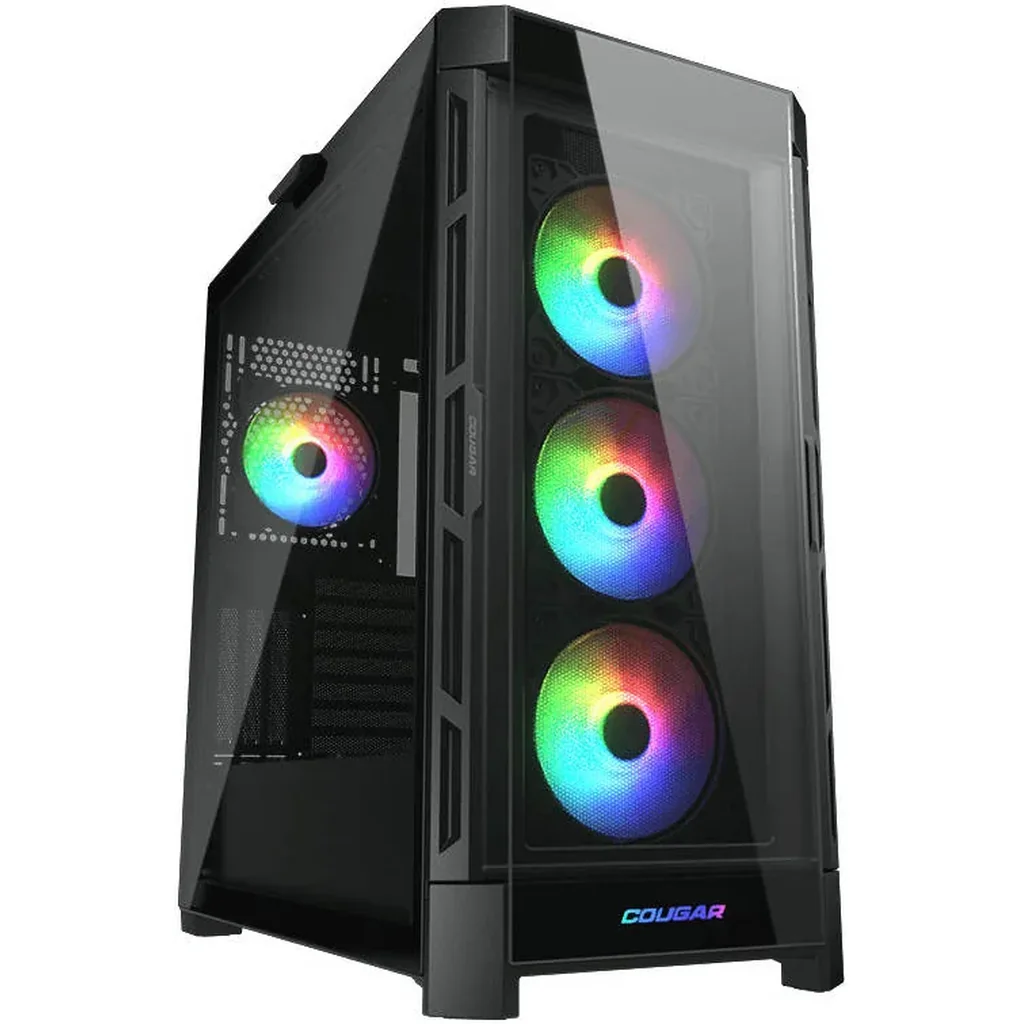

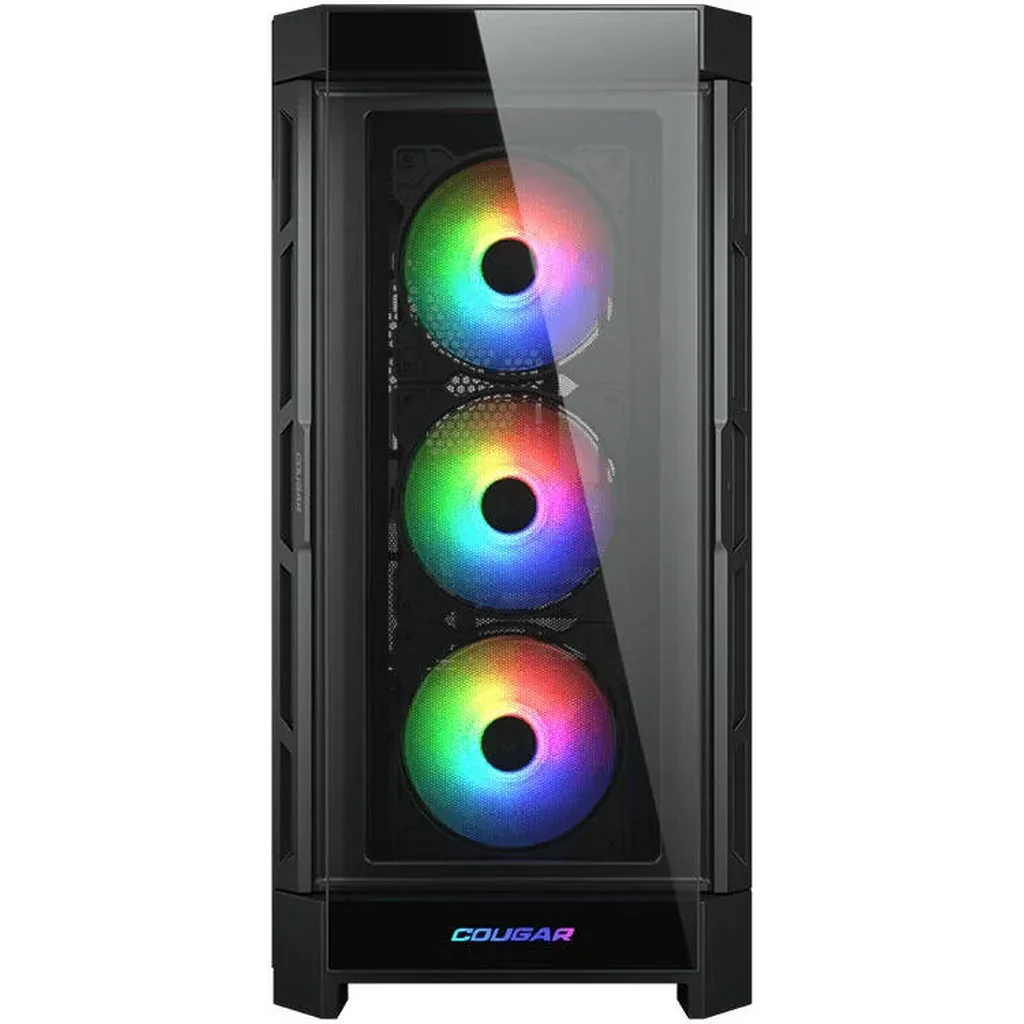

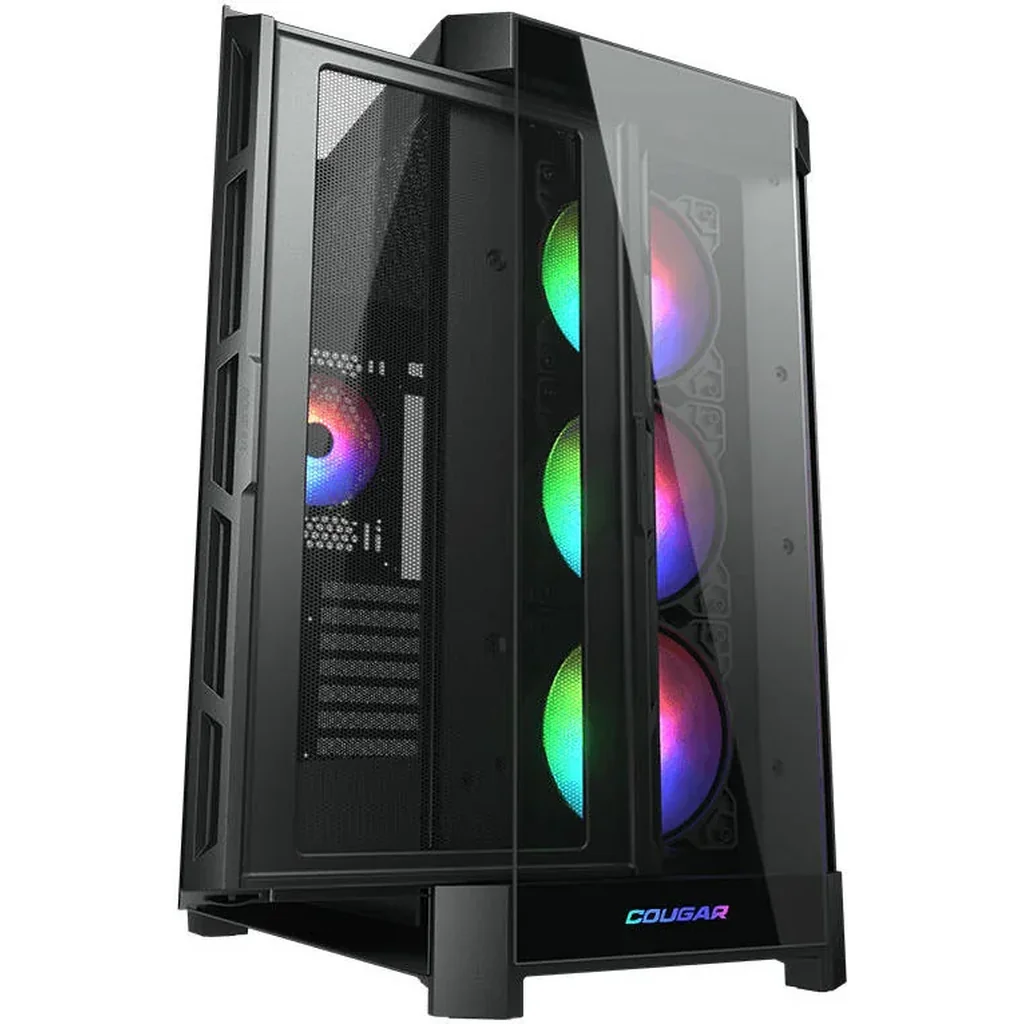

Lay the foundation of your next build with the robust Cougar Duoface Pro RGB Mid-Tower Case. Featuring a design that promotes airflow while offering ample room for high-grade components, the Duoface Pro gives new and experienced builders a good jumping point for their next rig.
Key Features
- ATX, M-ATX, M-ITX, E-ATX Support
- Steel Frame & Tempered Glass Panel
- 2 x 3.5″, 2 x 2.5″ Drive Bays
- 7 x Horizontal Expansion Slots
- 3 x Vertical Expansion Slots
- USB-A 2.0 & 3.2 Gen 1 Ports
- USB-C 3.2 Gen 2 Port
- Built-In Radiator Support
- Supports GPU’s up to 15.4″
Specifications
| Product Name | Duoface Pro RGB | |
|---|---|---|
| Case Form Factor | Mid Tower | |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / E-ATX | |
| Dimensions (WxHxD) | 240 x 496 x 465 (mm) 9.4 x 19.5 x 18.3 (in) |
|

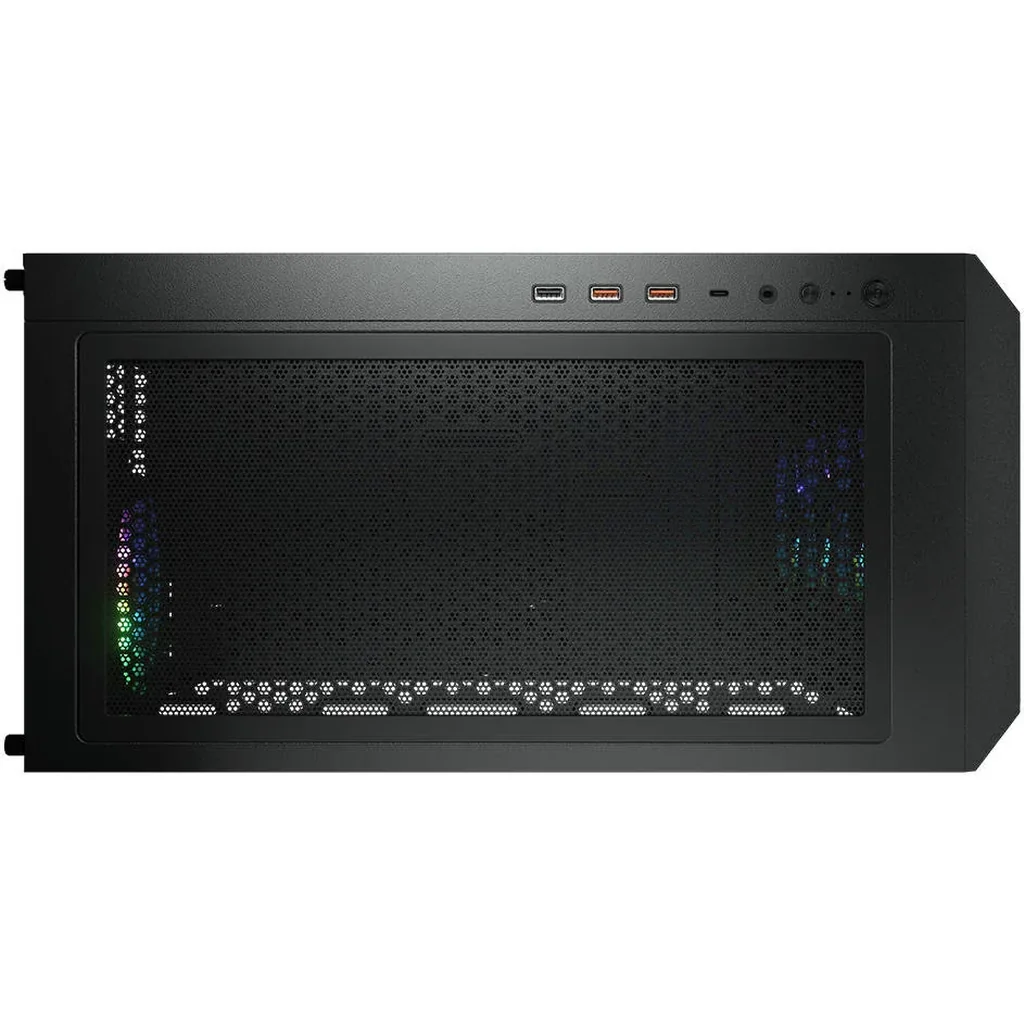

| I/O Panel | Type C Gen 2 (Key A 20-pin connector) x 1, USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x 1, RGB Button |
|
| 3.5″ Drive Bay | 2 | |
| 2.5″ Drive Bay | 2 (2 SSD trays included) | |
| Expansion Slots | 7+3 | |
| Vertical GPU Support | Yes | |
| Cooling Fan Support | Front | 120mm x 3 / 140mm x 2 |
| Top | 120mm x 3 / 140mm x 2 | |
| PSU Cover | 120mm x 2 | |
| Rear | 120mm x 1 / 140mm x 1 | |
| Pre-installed Fans | Front | 120mm ARGB fan x 3 |
| Rear | 120mm ARGB fan x 1 | |
| Speed | 1000 RPM | |
| Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | |
| Maximun Number of Fans | 9 | |
| Water Cooling Support | Front | *360mm / 280mm / 240 mm / 140 mm / 120mm |
| Top | *360mm / 280mm / 240 mm / 140 mm / 120mm | |
| Rear | 140 mm / 120mm | |

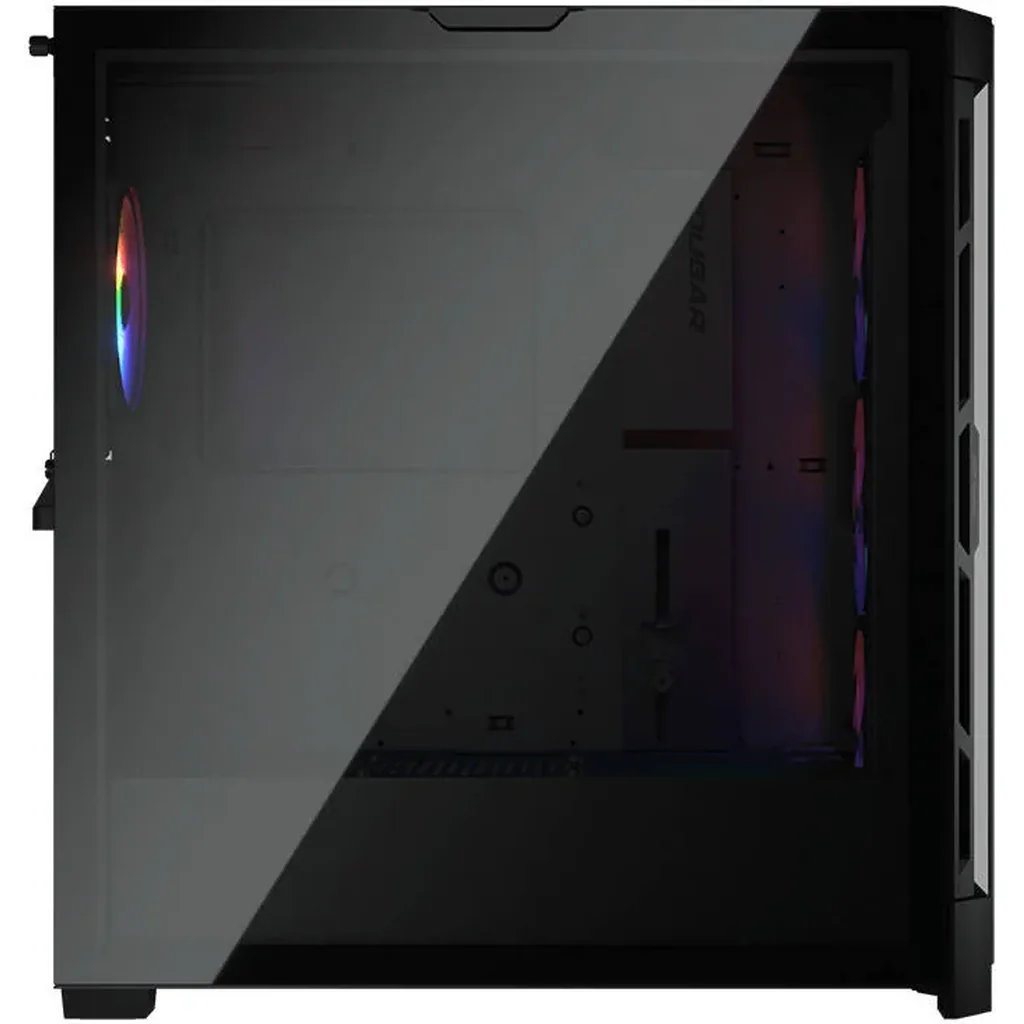

| Transparent Left Panel | Tempered Glass | |
| Onboard Lighting System | Yes | |
| RGB Sync with M/B | Yes | |
| COUGAR Logo RGB Light | Yes | |
| Max. Graphics Card Length | 390 (mm) / 15.4 (in) | |
| Max. CPU Cooler Height | 190 (mm) / 7.5 (in) | |
| Max. PSU Length | 200 (mm) / 7.9 (in) | |
