Description
Define Your Style

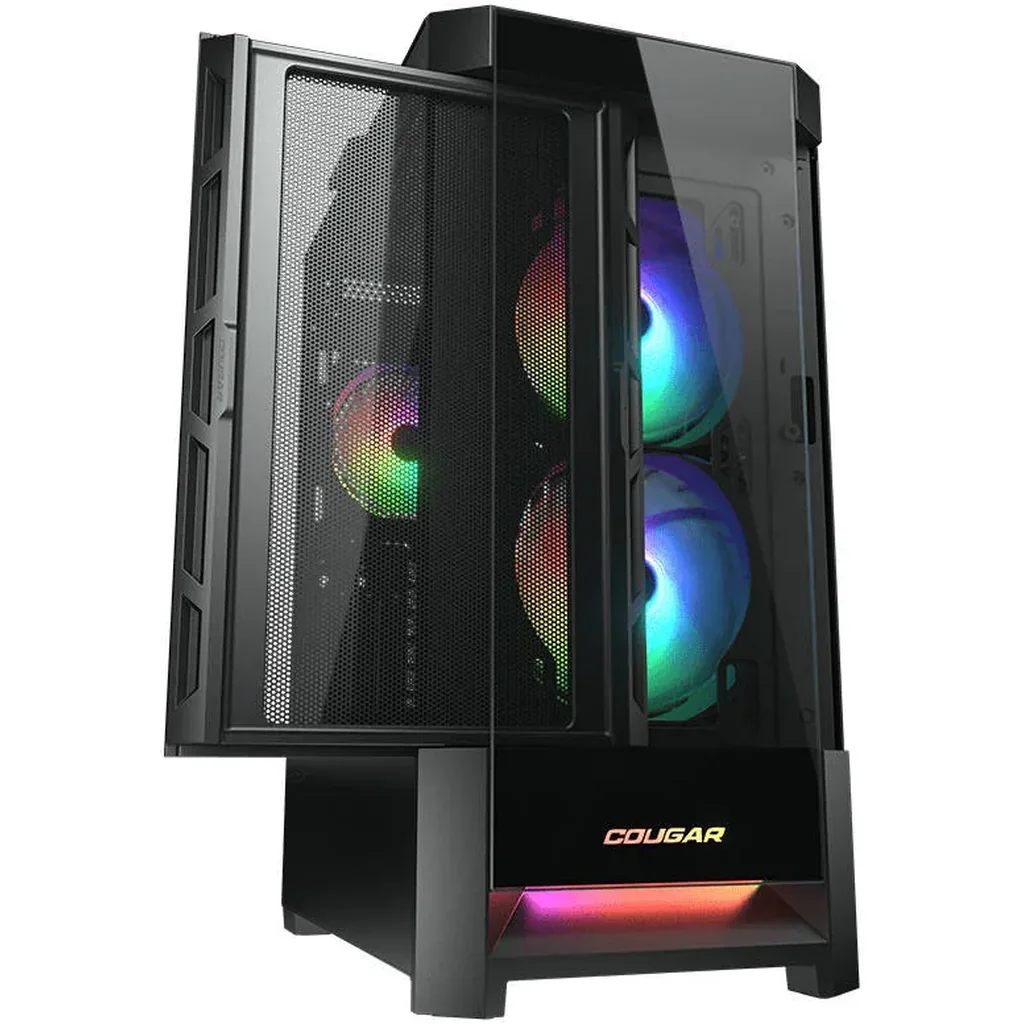

Duoface RGB package includes two distinctive front panels.

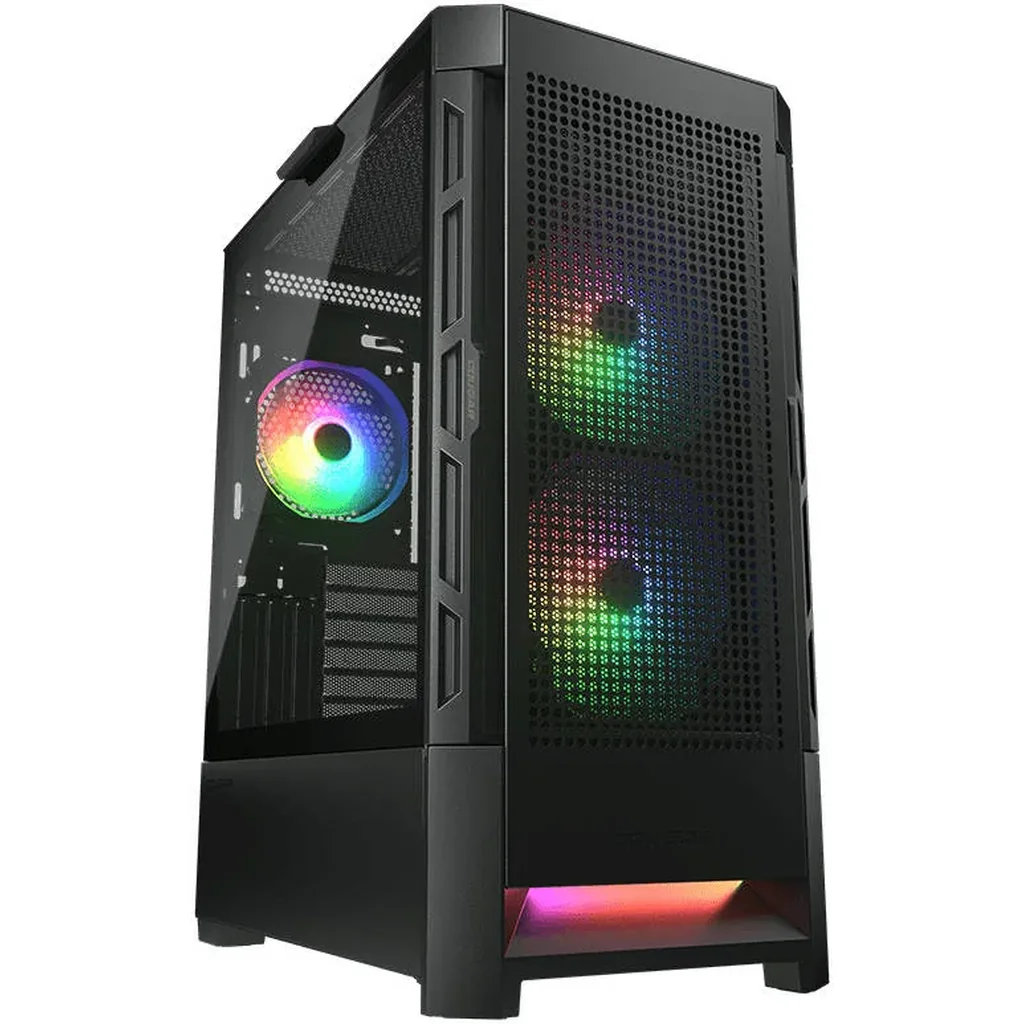

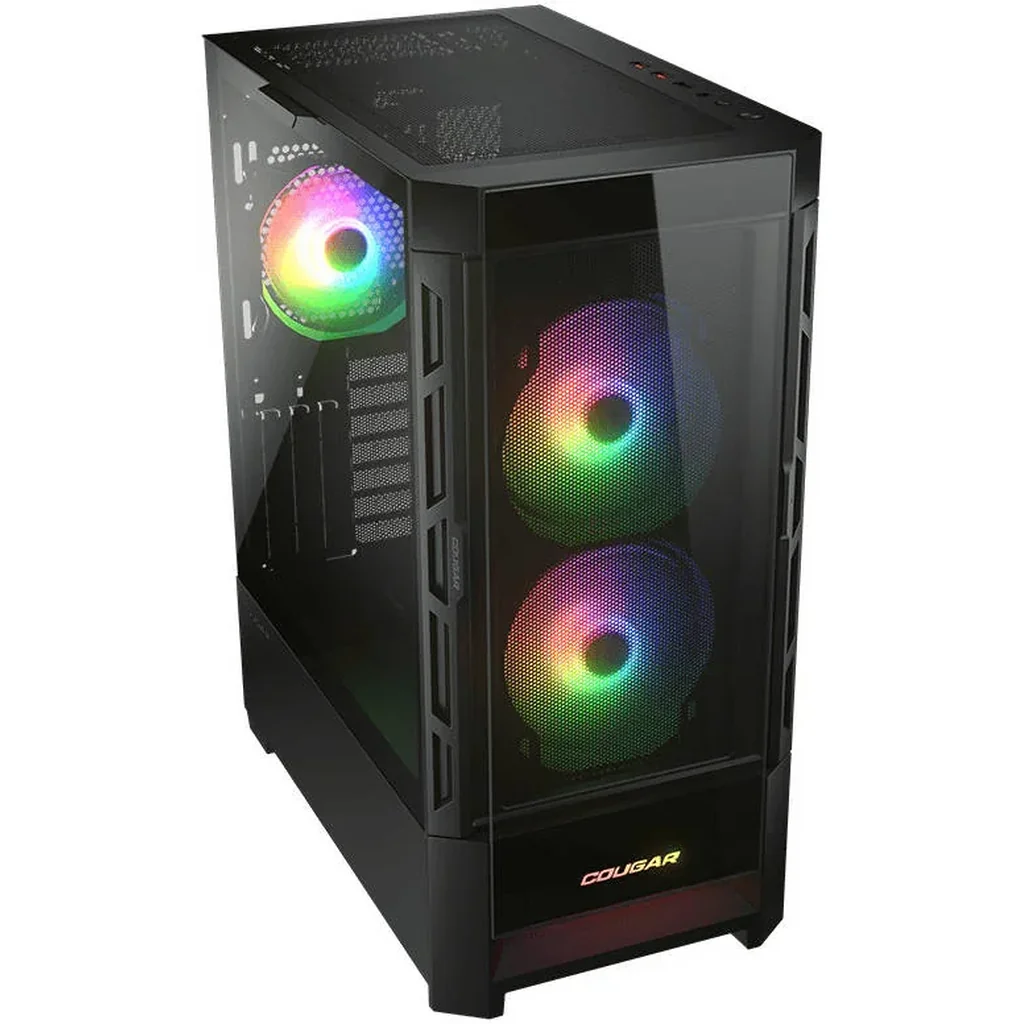

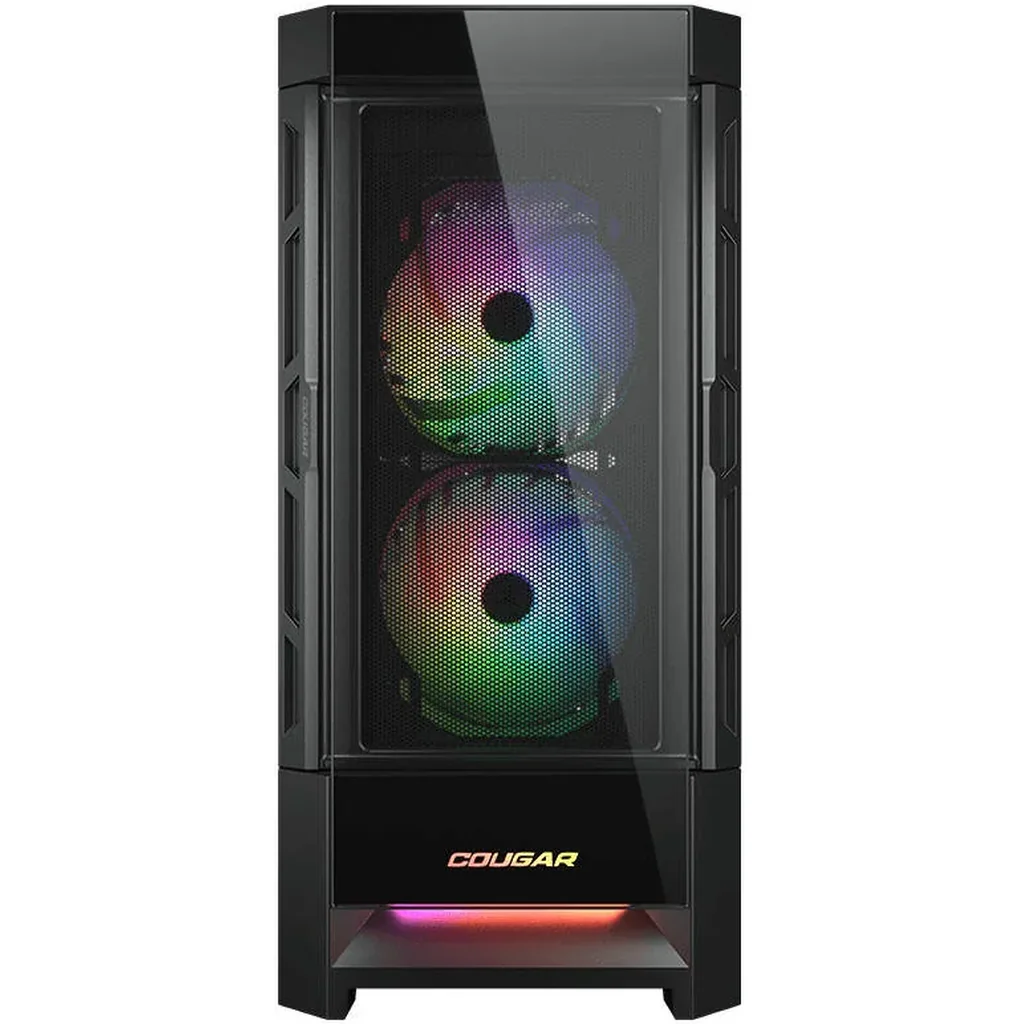

The tempered glass panel is able to show off brilliant lighting scenery and the airflow panel has extensive fresh air intakes. It not only brings you unbeatable cooling performance, but also displays fantastic lighting to your theme.
Specifications
| Product Name | Duoface RGB | |
|---|---|---|
| Case Form Factor | Mid Tower | |
| Motherboard Type | Mini ITX / Micro ATX / ATX / CEB / *E-ATX | |
| Dimensions (WxHxD) | 230 x 491 x 386 (mm) 9.1 x 19.3 x 15.2 (in) |
|

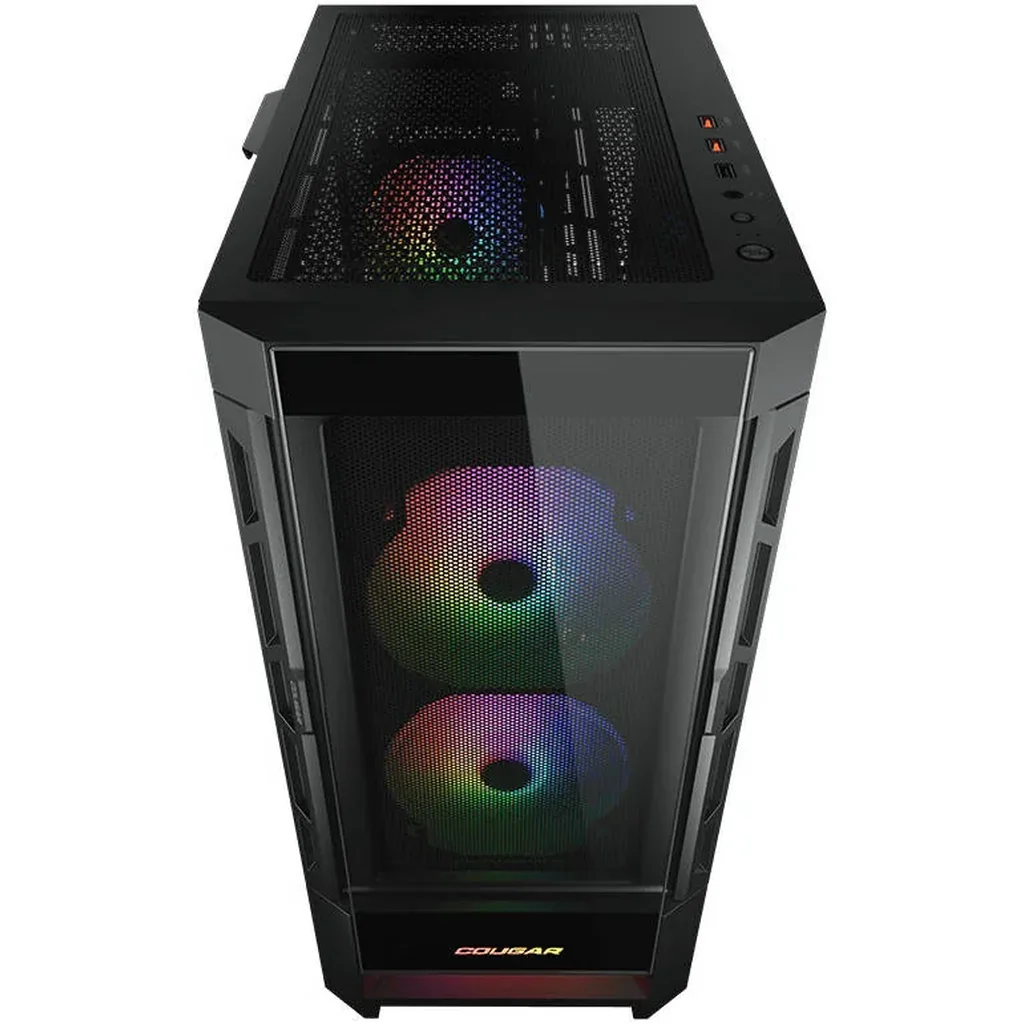

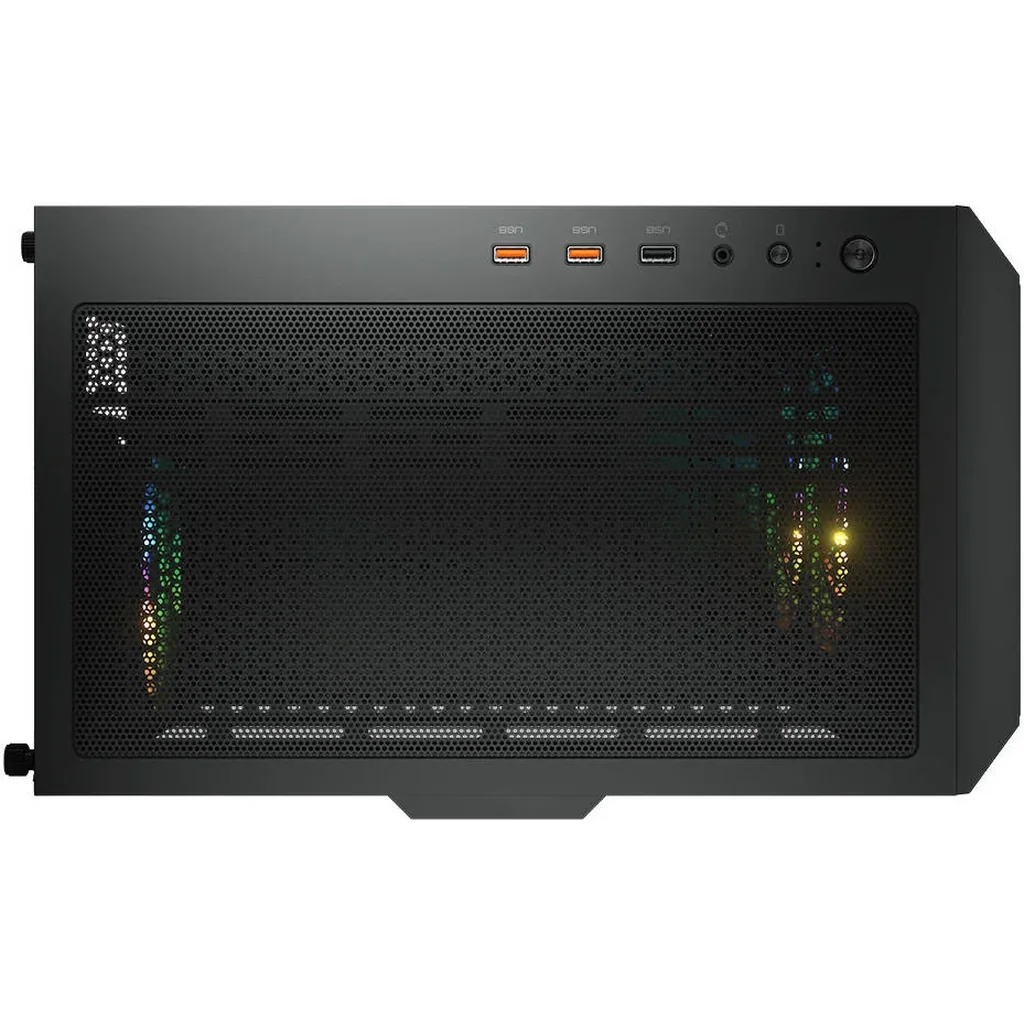

| I/O Panel | USB 3.0 x 2, USB 2.0 x 1, 4 Pole Headset Audio Jack x1, RGB Button | |
| 3.5″ Drive Bay | 2 | |
| 2.5″ Drive Bay | 2 (2 SSD trays included) | |
| Expansion Slots | 7+3 | |
| Vertical GPU Support | Yes | |
| Cooling Fan Support | Front | 120mm x 2 / 140mm x 2 |
| Top | 120mm x 2 / 140mm x 2 | |
| Rear | 120mm x 1 / 140mm x 1 | |
| Pre-installed Fans | Front | 140mm ARGB fan x 2 |
| Rear | 120mm ARGB fan x 1 | |
| Speed | 1000 RPM | |
| Connector | 5V 3 Pin (ARGB) / 3 Pin (Fan) | |
| Maximun Number of Fans | 5 Max. | |
| Water Cooling Support | Front | *280mm / 240mm / 140mm / 120mm |
| Top | *280mm / 240mm / 140mm / 120mm | |
| Rear | 120mm / 140mm | |

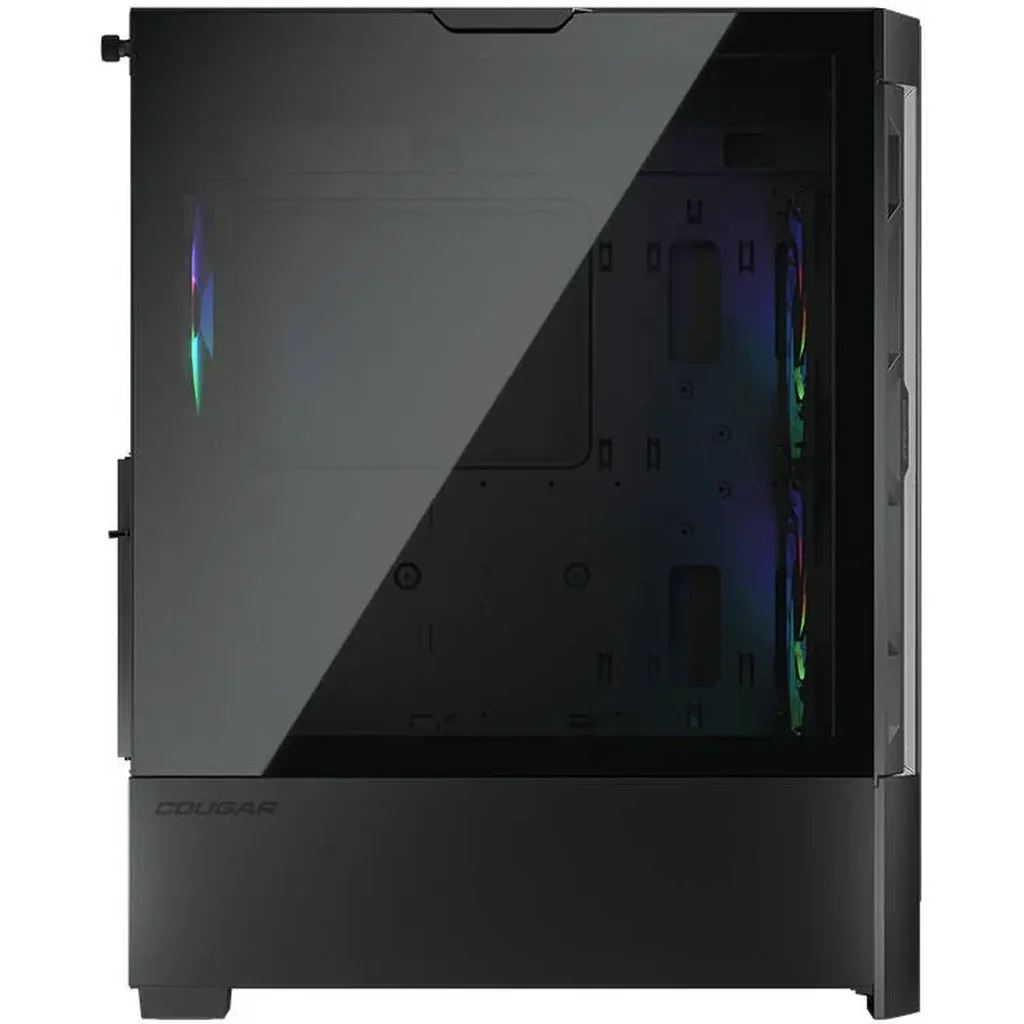

| Transparent Left Panel | 4mm Tempered Glass | |
| Onboard Lighting System | Yes | |
| RGB Sync with M/B | Yes | |
| COUGAR Logo RGB Light | Yes | |
| Max. Graphics Card Length | 330 (mm) / 13 (in) | |
| Max. CPU Cooler Height | 190 (mm) / 7.5 (in) | |
| Max. PSU Length | 160 (mm) / 6.3 (in) | |
