Description

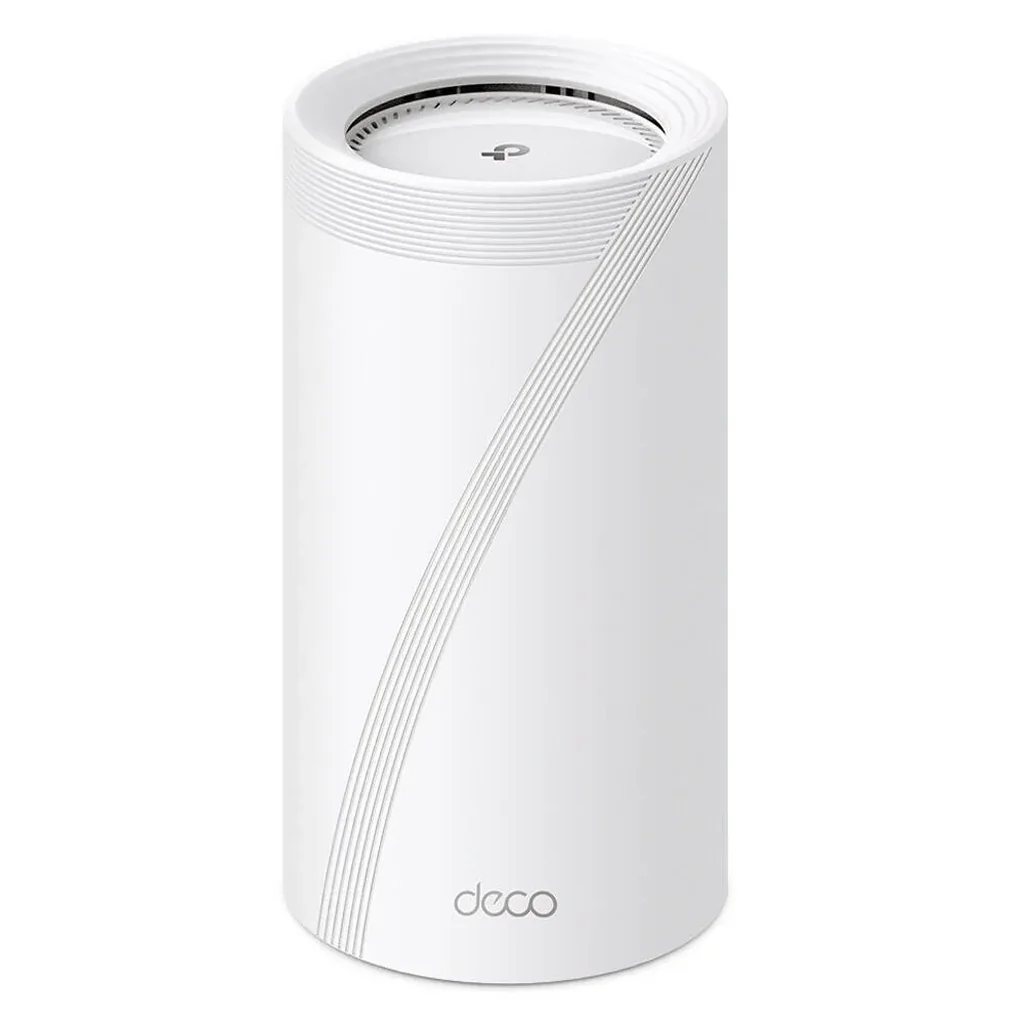

Deco BE85
BE19000 Tri-Band Whole Home Mesh WiFi 7 System
Key Features
- 12-Stream 19 Gbps Tri-Band WiFi – 11520 Mbps (6 GHz) + 5760 Mbps (5 GHz) + 1376 Mbps (2.4 GHz).
- Unprecedented 10 Gbps Network – 1× 10 Gbps Ethernet/Fiber Combo WAN/LAN port + 1× 10 Gbps WAN/LAN port + 2× 2.5 Gbps ports ensure max flexibility and boosted throughput.

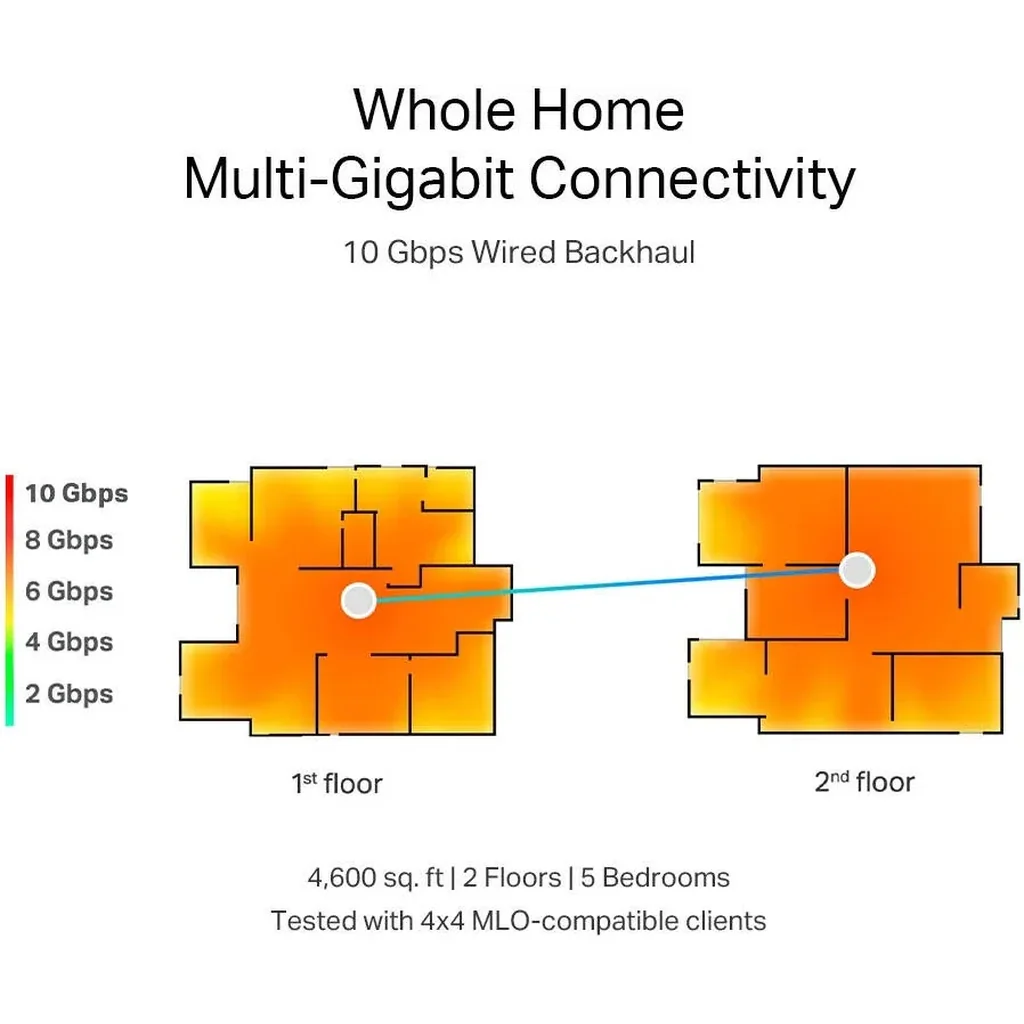

- Wireless and Wired Combined Backhaul – Connects a wireless and wired backhaul with each unit simultaneously to improve overall throughput and reduce latency.
- Multi-Link Operation (MLO) – Simultaneously send and receive data across different bands and channels to increase throughput, reduce latency, and improve reliability.
- 320 MHz Channels – Double the bandwidth and enables many more simultaneous transmissions at the fastest possible speeds.
- Works on the 6 GHz Band – Minimizes congestion with greenfield spectrum, delivering robust high-speed connections.
- TP-Link HomeShield – Provides comprehensive network protection, robust parental controls, and real-time IoT security.
- Universal Compatibility – Backward compatible with all WiFi generations and works with any internet service provider (ISP) and modem.
Specifications
| Wireless | |
|---|---|
| Standards | Wi-Fi 7, IEEE 802.11be/ax 6 GHz, IEEE 802.11be/ax/ac/n/a 5 GHz, IEEE 802.11be/ax/n/b/g 2.4 GHz |
| WiFi Speeds | BE19000: 6 GHz – 11520 Mbps (802.11be), 5 GHz – 5760 Mbps (802.11be), 2.4 GHz – 1376 Mbps (802.11be) |
| WiFi Range | Broader Whole Home Coverage, TP-Link Mesh Technology, Optional Ethernet backhaul |

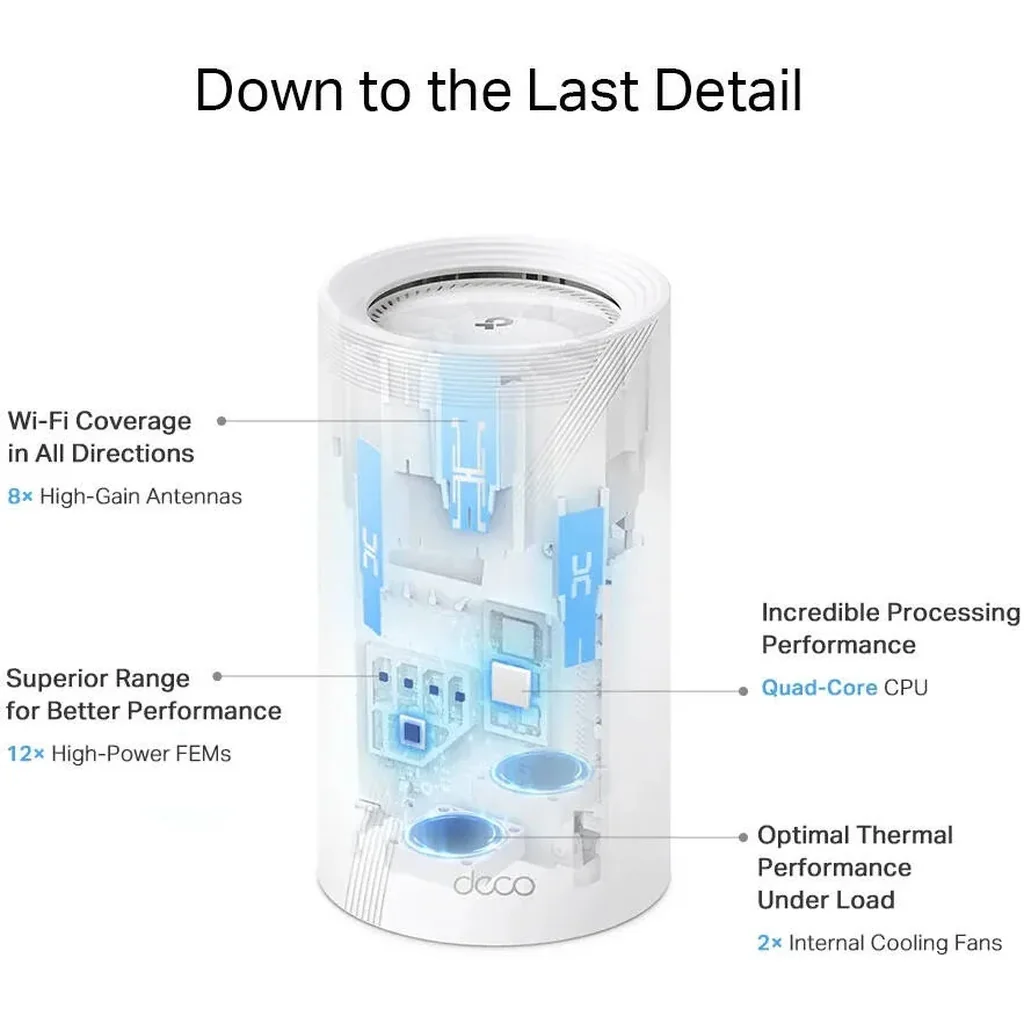

| AI-Driven Mesh | Intelligently learns the network environment, 8× High-Gain Antennas, Tri-Band, 4×4 MU-MIMO, OFDMA, 12 Streams |
| Working Modes | |
| Router Mode | Yes |
| Access Point Mode | Yes |
| Advanced Functions | |
| Multi-Link Operation (MLO) | Yes |
| 320 MHz Channel | Yes |
| 4K-QAM | Yes |
| Multi-RUs | Yes |
| Works with Alexa and Google Assistant | Yes |
| Security | |
| Network Security | SPI Firewall, Access Control |
| HomeShield Security | Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner |
| Guest Network | 1× 6 GHz Guest Network, 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network, Effective Time, Bandwidth Control |
| VPN Server | OpenVPN Server, PPTP VPN Server, L2TP/IPSec VPN Server |
| VPN Client | OpenVPN Client, PPTP VPN Client, L2TP/IPSec VPN Client |
| WiFi Encryption | WPA-Personal, WPA2-Personal, WPA3-Personal |
| Hardware | |

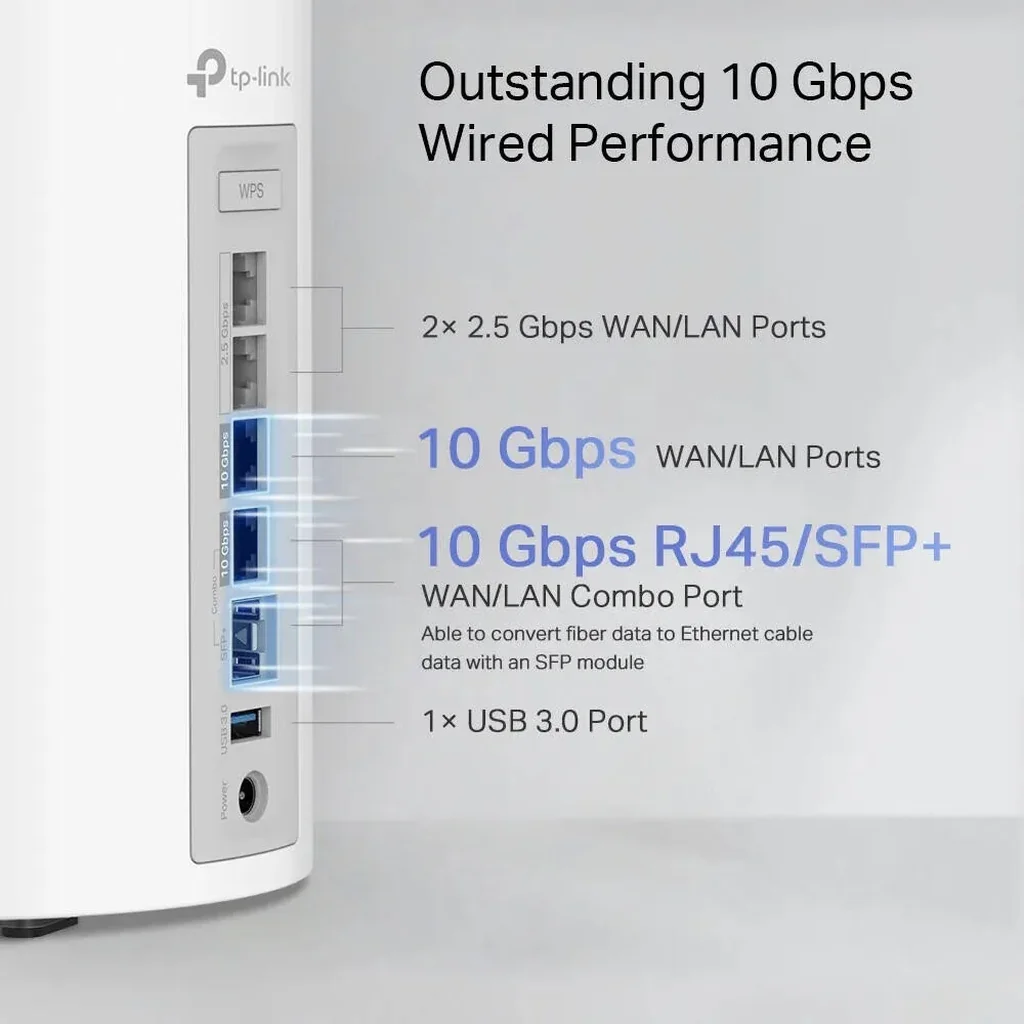

| Ethernet Ports | 1× 10 Gbps, 1× 10 Gbps SFP+/RJ45 Combo, 2× 2.5 Gbps per Deco Unit, Supports WAN/LAN auto-sensing |
| USB Support | 1× USB 3.0 Port, FTP Server, Media Server, Apple Time Machine, Samba Server |
| Buttons | 1× Reset Button, 1× WPS |
| Software | |
| Advanced Features | Reboot Schedule, Tapo/Kasa Onboarding, IoT network & Device Isolation, Static Route Function, Node/Band Connection Preference |
| Protocols | IPv4, IPv6 |
| WAN Types | Dynamic IP, Static IP, PPPoE, PPTP, L2TP |
| Quality of Service | HomeShield QoS, QoS by Device |
| Cloud Service | OTA Firmware Upgrade, TP-Link ID, DDNS |
| NAT Forwarding | Port Forwarding, UPnP |
| IPTV | IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN |
| DHCP | Address Reservation, DHCP Client List, Server |
| DDNS | TP-Link |
| Management | Deco App |
| Test Data | |
| WiFi Transmission Power | CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz), <23 dBm (6 GHz) FCC: <30 dBm (2.4 GHz), <30 dBm (5 GHz), <30 dBm (6 GHz) |
| Physical | |
| Dimensions (W×D×H) | 5.04 × 5.04 × 9.29 in (128 × 128 × 236 mm) |
| Package Contents | (1-pack): 1 Deco BE85 unit, 1 RJ45 Ethernet cable, 1 Power adapter, Quick Installation Guide |
| Others | |
| Certifications | CE, FCC, RoHS |
| Environment | Operating Temperature: 0°C |
