Description

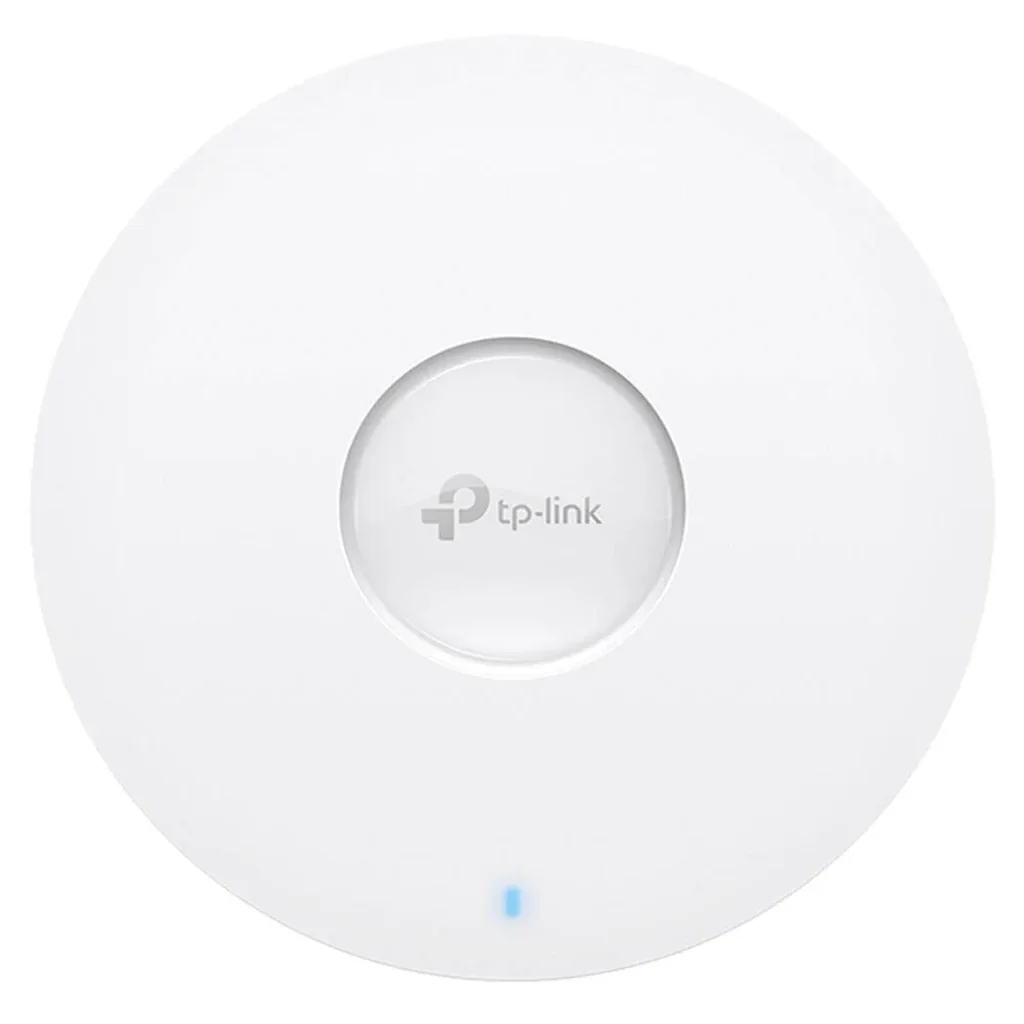

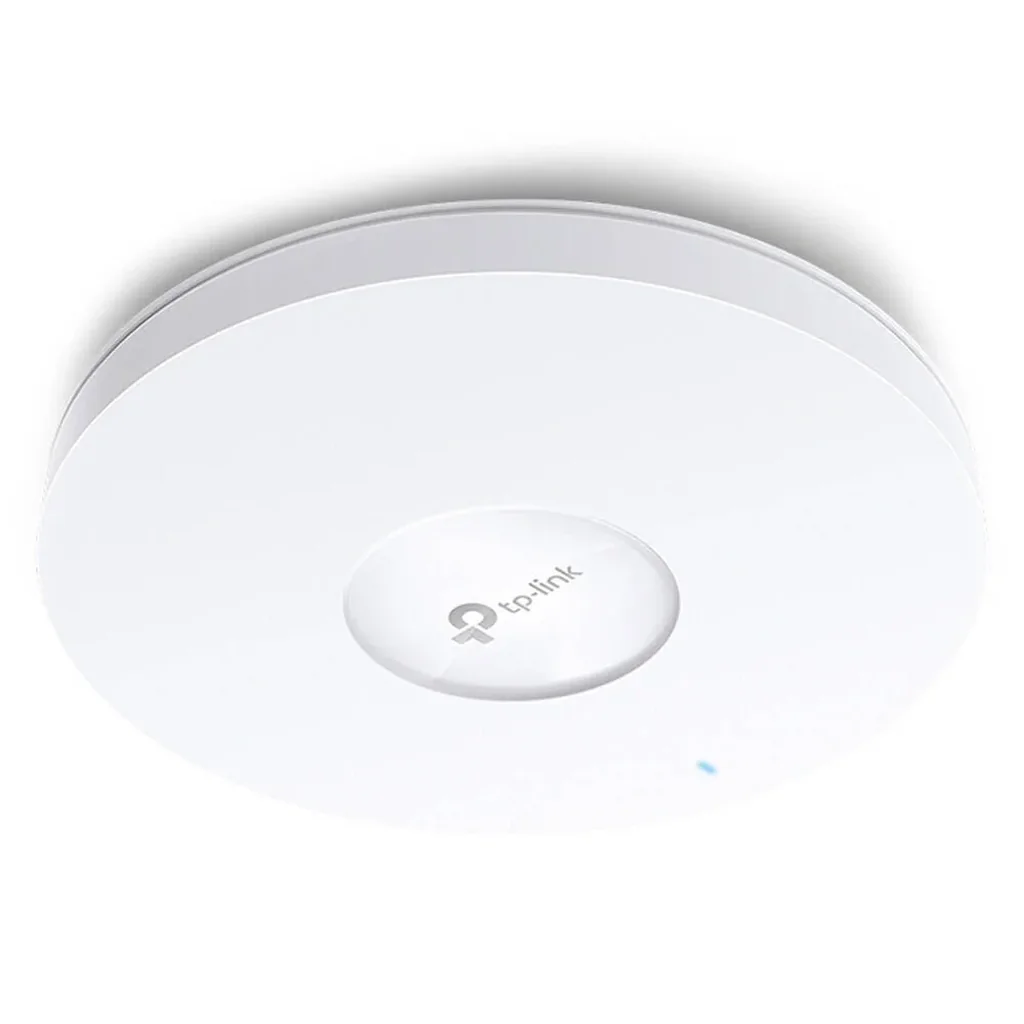

EAP653
AX3000 Ceiling Mount WiFi 6 Access Point
Designed with the latest wireless Wi-Fi 6 technology featuring 1024-QAM, HE60 and Long OFDM Symbol, the EAP653 boosts dual-band Wi-Fi speeds up to 2976 Mbps.
- Ultra-Fast WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 2402 Mbps on 5 GHz totals 2976 Mbps WiFi speeds.
- High-Efficiency WiFi 6: More connected devices can enjoy faster speeds.

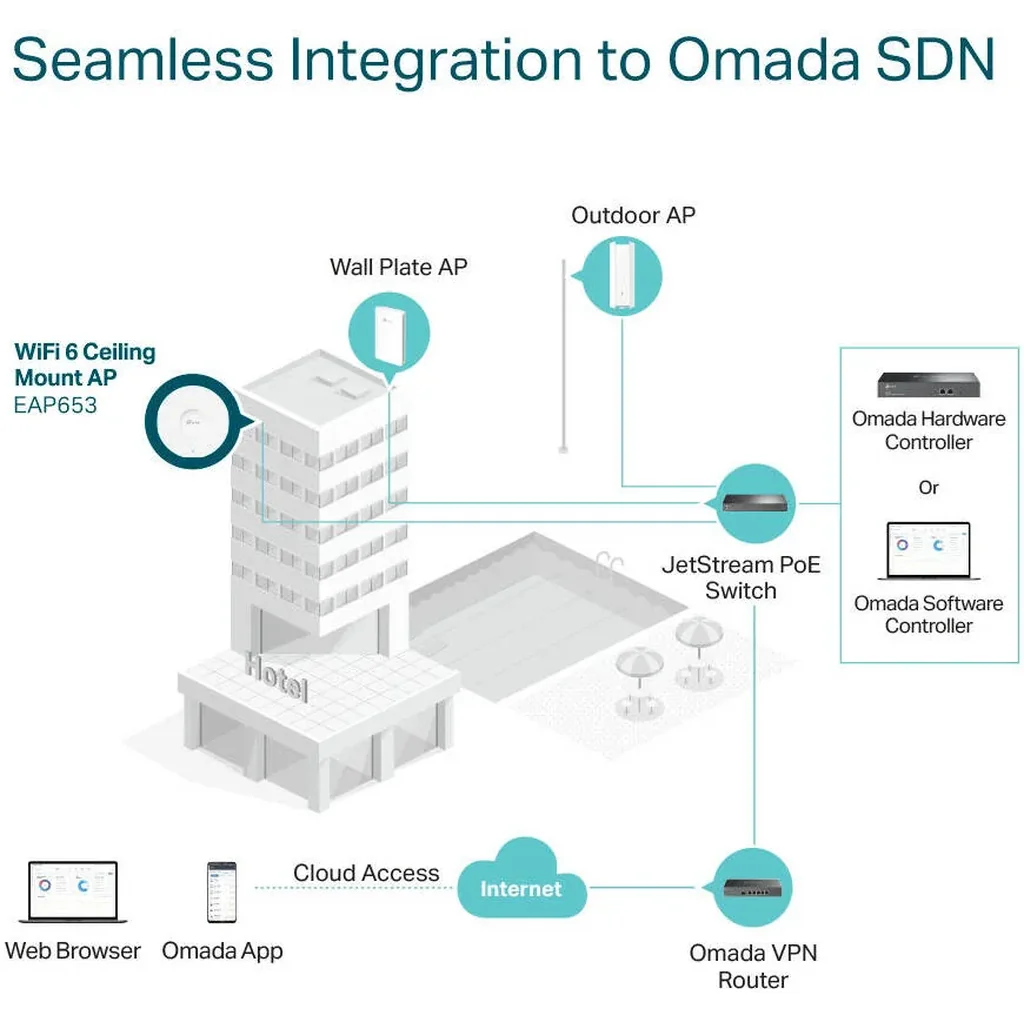

- Centralized Cloud Management: Omada SDN integration manages the whole network locally or from the cloud via web UI or Omada app.
- 160 MHz Channel: Double the data at peak transmission times on a single stream with HE160.
- Seamless Roaming: Video streams and voice calls are unaffected as users move between locations.
- Omada Mesh: Enables wireless connectivity between access points for extended range and flexible deployment.
- PoE+ Powered: Supports both 802.3at PoE+ and DC (DC adapter sold separately) power supply for flexible installations.

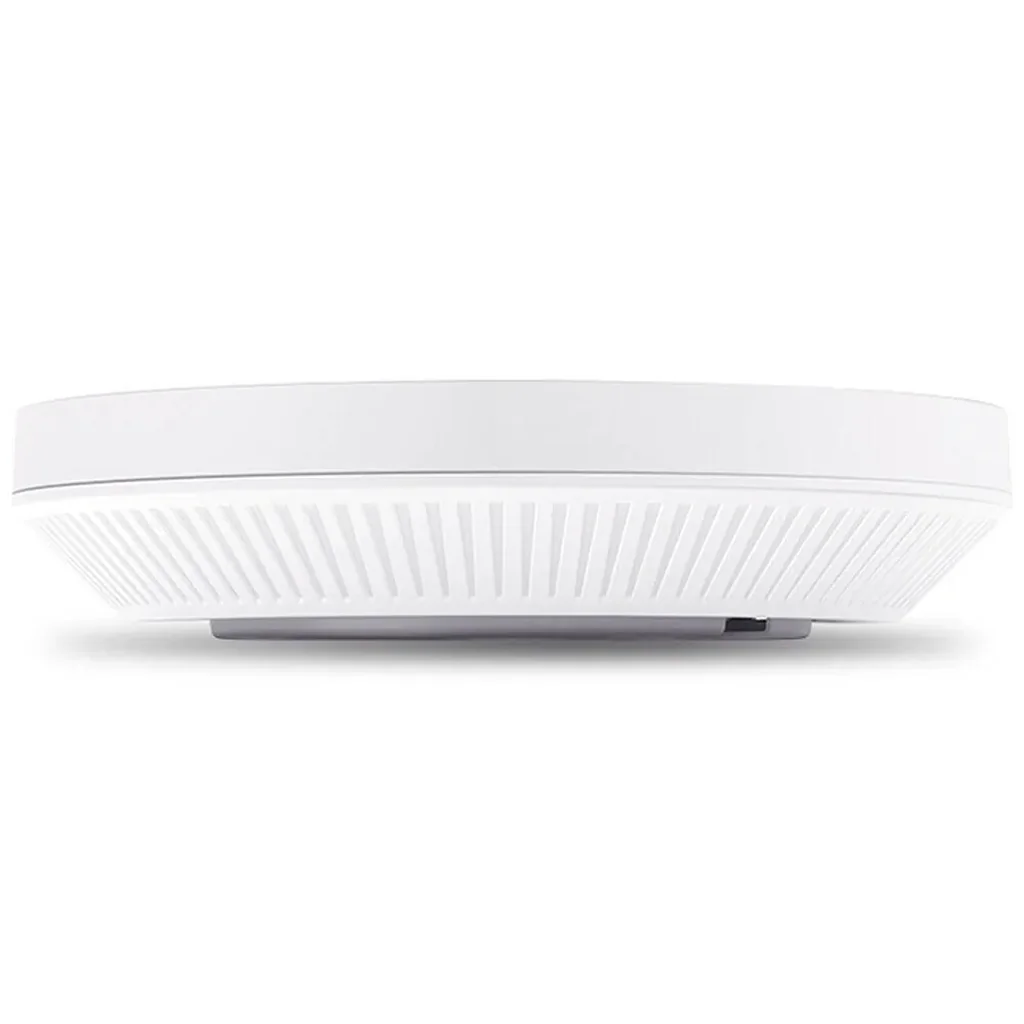

- Ultra-Slim Design: Φ160 mm × 33.6 mm elegant design brings more agility.
Specifications
| HARDWARE FEATURES | |

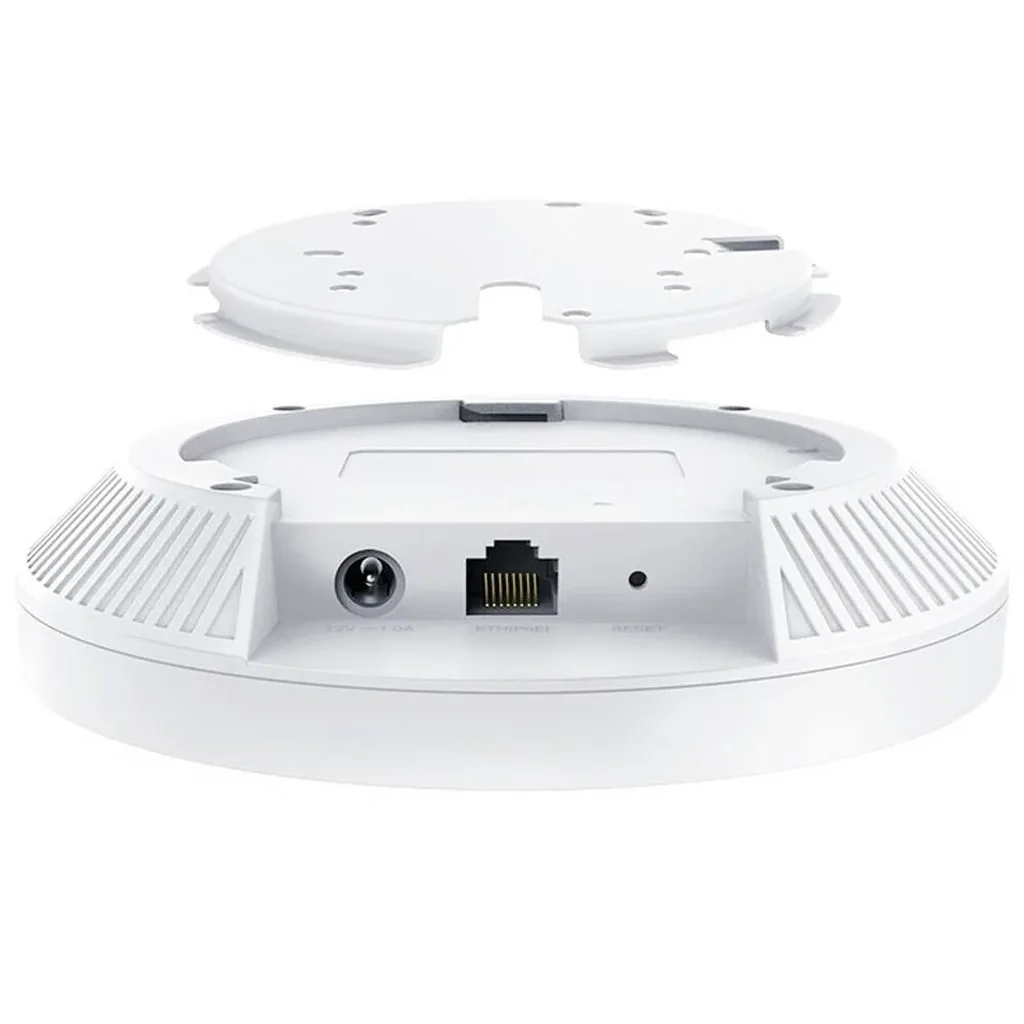

| Interface | 1× Gigabit Ethernet (RJ-45) Port (supports IEEE802.3at PoE) |
| Button | Reset |
| Power Supply | – 802.3at PoE |
| – 12V DC | |
| (EU Version: 12 V / 1.0 A DC. US Version: 12 V / 1.5 A DC). | |
| Note: DC adapter is not included in the package, and is sold separately. | |
| Power Consumption | – EU: 13.5 W |
| – US: 14.7 W | |
| Dimensions ( W x D x H ) | 6.3 × 6.3 × 1.3 in (160 × 160 × 33.6 mm) |
| Antenna Type | Internal Omni |
| – 2.4 GHz: 2× 4 dBi | |
| – 5 GHz: 2× 5 dBi | |
| Mounting | – Ceiling /Wall Mounting (Kits included) |
| – Junction Box Mounting | |
| WIRELESS FEATURES | |
| Wireless Standards | IEEE 802.11ax/ac/n/g/b/a |
| Frequency | 2.4 GHz and 5 GHz |
| Signal Rate | – 5 GHz: Up to 2402 Mbps† |
| – 2.4 GHz: Up to 574 Mbps† | |
| Wireless Functions | – 1024-QAM |
| – 4× Longer OFDM Symbol | |
| – OFDMA | |
| – Multiple SSIDs (Up to 16 SSIDs, 8 for each band) | |
| – Enable/Disable Wireless Radio | |
| – Automatic Channel Assignment | |
| – Transmit Power Control (Adjust Transmit Power on dBm) | |
| – QoS(WMM) | |
| – MU-MIMO | |
| – HE160 (160 MHz Bandwidth)‡ | |
| – Seamless Roaming § | |
| – Omada Mesh§ | |
| – Band Steering | |
| – Load Balance | |
| – Airtime Fairness | |
| – Beamforming | |
| – Rate Limit | |
| – Reboot Schedule | |
| – Wireless Schedule | |
| – Wireless Statistics based on SSID/AP/Client | |
| Wireless Security | – Captive Portal Authentication§ |
| – Access Control | |
| – Wireless Mac Address Filtering | |
| – Wireless Isolation Between Clients | |
| – SSID to VLAN Mapping | |
| – Rogue AP Detection | |
| – 802.1X Support | |
| – WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Transmission Power | – CE: |
| <20 dBm(2.4 GHz, EIRP) | |
| <23 dBm(5 GHz, Band1 & Band2, EIRP) | |
| <30 dBm(5 GHz, Band3, EIRP) | |
| – FCC: | |
| <25 dBm (2.4 GHz) | |
| <25 dBm (5 GHz) | |
| MANAGEMENT | |
| Omada App | Yes |
| Centralized Management | – Omada Hardware Controller (OC300) |
| – Omada Hardware Controller (OC200) | |
| – Omada Software Controller | |
| – Omada Cloud-Based Controller | |
| Cloud Access | Yes (Through OC300, OC200, Omada Software Controller, or Omada Cloud-Based Controller) |
| Email Alerts | Yes |
| LED ON/OFF Control | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c, v3 |
| System Logging Local/Remote Syslog | Local/Remote Syslog |
| SSH | Yes |
| Web-based Management | HTTP/HTTPS |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller. |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | – EAP653 |
| – Ceiling/Wall Mounting Kits | |
| – Installation Guide | |
| System Requirements | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Windows 11, Linux |
| Environment | – Operating Temperature: 0-40 ℃ (32-104 ℉) |
| – Storage Temperature: -40-70 ℃ (-40-158 ℉) | |
| – Operating Humidity: 10-90% RH non-condensing | |
| – Storage Humidity: 5-90% RH non-condensing | |
