SG3428XMP

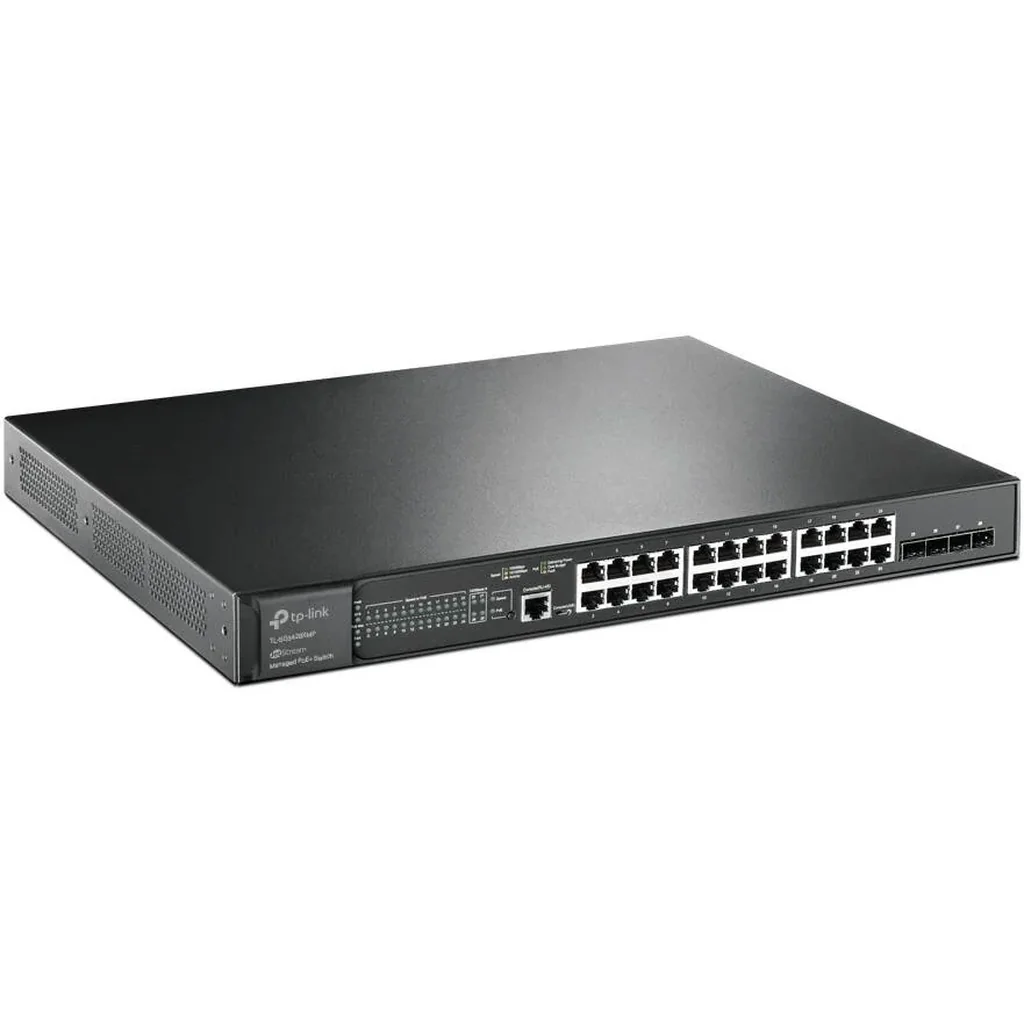

JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
Specifications
| HARDWARE FEATURES | |

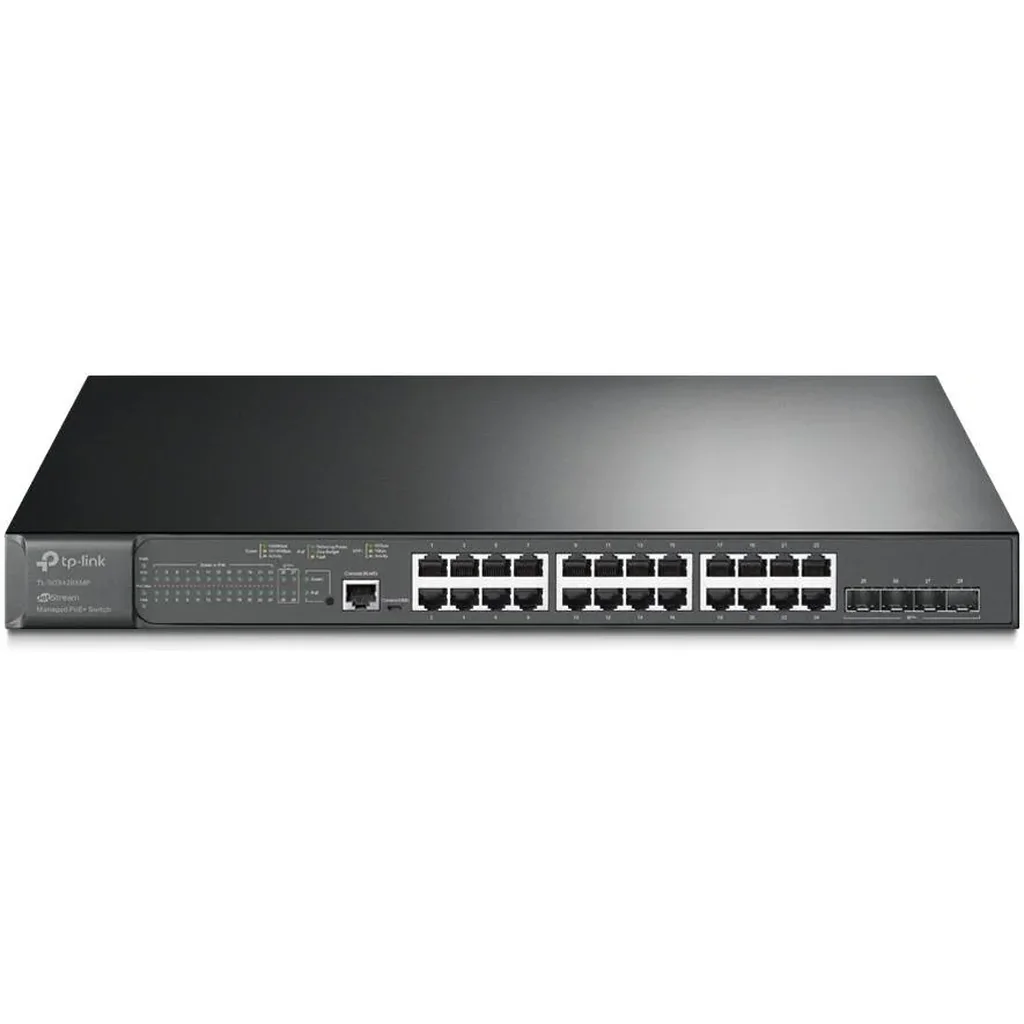

| Interface | 24× 10/100/1000 Mbps RJ45 Ports, 4× 10G SFP+ Slots, 1× RJ45 Console Port, 1× Micro-USB Console Port |
| Fan Quantity | 2 |

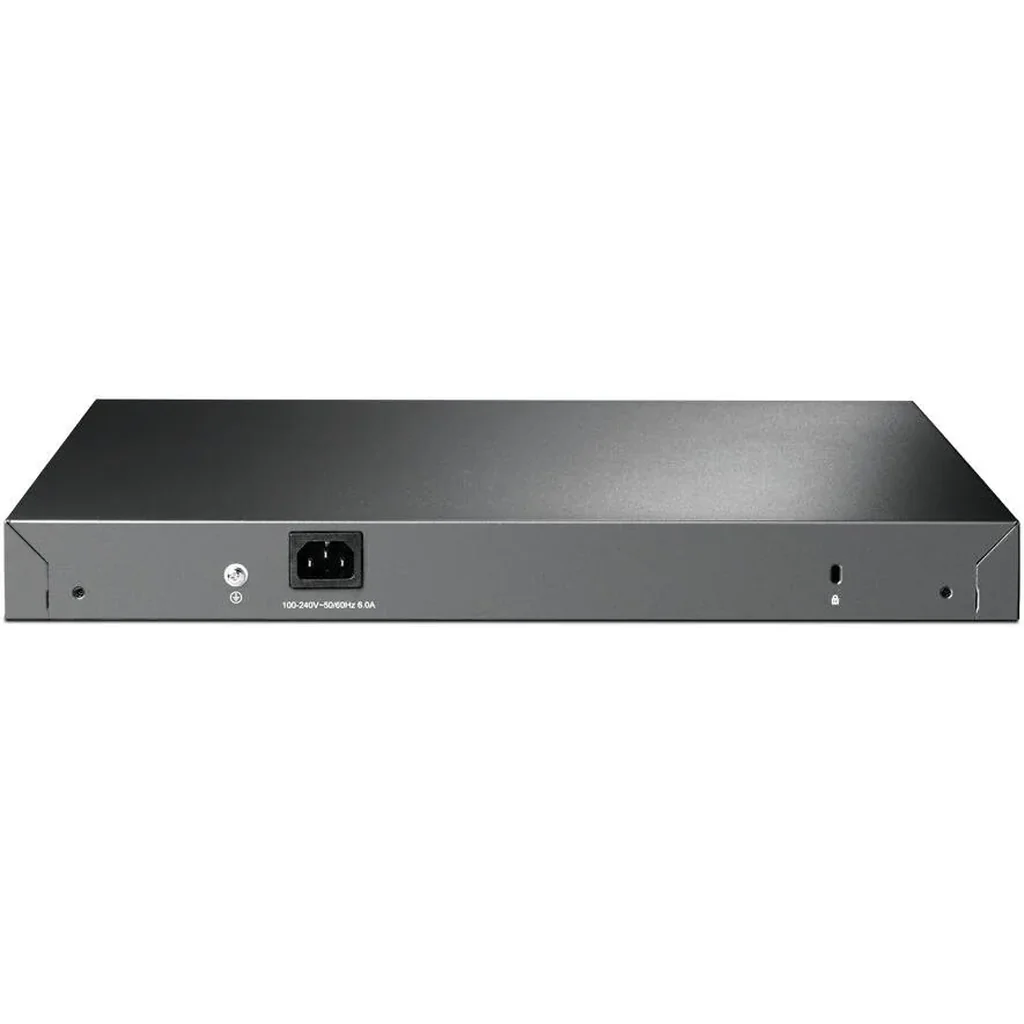

| Power Supply | 100-240 V AC~50/60 Hz |
| PoE+ Ports (RJ45) | Standard: 802.3at/af compliant, PoE+ Ports: 24 Ports, up to 30 W per port, Power Budget: 384 W |
| Dimensions (W x D x H) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 34.4 W (110V/60Hz) (no PD device connected), 465.8 W (110V/60Hz) (with 384 W PD device connected) |
| Max Heat Dissipation | 117.38 BTU/h (110 V/60 Hz) (no PD device connected), 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected) |
| PERFORMANCE | |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame | 9 KB |
| SOFTWARE FEATURES | |
| Quality of Service | 8 priority queues, 802.1p CoS/DSCP priority, Queue scheduling (SP, WRR, SP+WRR), Bandwidth Control (Port/Flow based Rating Limiting), Smoother Performance, Action for Flows (Mirror, Redirect, Rate Limit, QoS Remark) |
| L3 Features | 16 IPv4/IPv6 Interfaces, Static Routing (48 static routes), Static ARP (128 Static Entries), Proxy ARP, Gratuitous ARP, DHCP Server, DHCP Relay (Interface Relay, VLAN Relay), DHCP L2 Relay |
| L2 and L2+ Features | Link Aggregation (static link aggregation, 802.3ad LACP, up to 8 aggregation groups, 8 ports per group), Spanning Tree Protocol (802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security: TC Protect, BPDU Filter, Root Protect), Loopback Detection (Port based, VLAN based), Flow Control (802.3x Flow Control, HOL Blocking Prevention), Mirroring (Port Mirroring, CPU Mirroring, One-to-One, Many-to-One, Tx/Rx/Both) |
| L2 Multicast | IGMP Snooping (IGMP v1/v2/v3 Snooping, Fast Leave, IGMP Snooping Querier, IGMP Authentication), MLD Snooping (MLD v1/v2 Snooping, Fast Leave, MLD Snooping Querier, Static Group Config, Limited IP Multicast), MVR, Multicast Filtering (256 profiles, 16 entries per profile) |
| Advanced Features | Support Omada Hardware Controller (OC200/OC300), Software Controller, Cloud-Based Controller, Automatic Device Discovery, Batch Configuration, Batch Firmware Upgrading, Intelligent Network Monitoring, Abnormal Event Warnings, Unified Configuration, Reboot Schedule, ZTP (Zero-Touch Provisioning) |
| VLAN | VLAN Group (Max 4K VLAN Groups), 802.1Q Tagged VLAN, MAC VLAN (7 Entries), Protocol VLAN (Protocol Template 16, Protocol VLAN 16), Private VLAN, GVRP, VLAN VPN (QinQ), Port-Based QinQ, Selective QinQ, Voice VLAN |
| Access Control List | Time-based ACL, MAC ACL (Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type), IP ACL (Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority), Combined ACL, Packet Content ACL, IPv6 ACL, Policy (Mirroring, Redirect, Rate Limit, QoS Remark), ACL apply to Port/VLAN |
| Security | IP-MAC-Port Binding (512 Entries, DHCP Snooping, ARP Inspection, IPv4 Source Guard: 100 Entries), IPv6-MAC-Port Binding (512 Entries, DHCPv6 Snooping, ND Detection, IPv6 Source Guard: 100 Entries), DoS Defend, Static/Dynamic Port Security (up to 64 MAC addresses per port), Broadcast/Multicast/Unicast Storm Control (kbps/ratio control mode), 802.1X (Port base authentication, Mac base authentication, VLAN Assignment, MAB, Guest VLAN, Support Radius authentication and accountability), AAA (including TACACS+), Port Isolation, Secure web management through HTTPS with SSLv3/TLS 1.2, Secure Command Line Interface (CLI) management with SSHv1/SSHv2, IP/Port/MAC based access control |
| IPv6 | IPv6 Dual IPv4/IPv6, Multicast Listener Discovery (MLD) Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, IPv6 neighbor discovery (ND), Path maximum transmission unit (MTU) discovery, Internet Control Message Protocol (ICMP) version 6, TCPv6/UDPv6, IPv6 applications (DHCPv6 Client, Ping6, Tracert6, Telnet (v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP) |
| Management | Web-based GUI, Command Line Interface (CLI) through the console port, telnet, SNMP v1/v2c/v3 (Trap/Inform, RMON (1,2,3,9 groups)), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log |
| MIBs | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB |
| MANAGEMENT | |
| Omada App | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Centralized Management | Omada Cloud-Based Controller, Omada Hardware Controller (OC300), Omada Hardware Controller (OC200), Omada Software Controller |
| Cloud Access | Yes. Requiring the use of OC300, OC200, Omada Cloud-Based Controller, or Omada Software Controller |
| Zero-Touch Provisioning | Yes. Requiring the use of Omada Cloud-Based Controller |
| Management Features | Web-based GUI, Command Line Interface (CLI) through the console port, telnet, SNMP v1/v2c/v3 (Trap/Inform, RMON (1,2,3,9 groups)), SDM Template, DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image, Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log |
| OTHERS | |
| Certification | CE, FCC, RoHS |
| Package Contents | TL-SG3428XMP Switch, Power Cord, Quick Installation Guide, Rackmount Kit, Rubber Feet |
| System Requirements | Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux |
| Environment | Operating Temperature: 0-45 ℃ (32-113 ℉); Storage Temperature: -40-70 ℃ (-40-158 ℉); Operating Humidity: 10-90% RH non-condensing; Storage Humidity: 5-90% RH non-condensing |
