Description

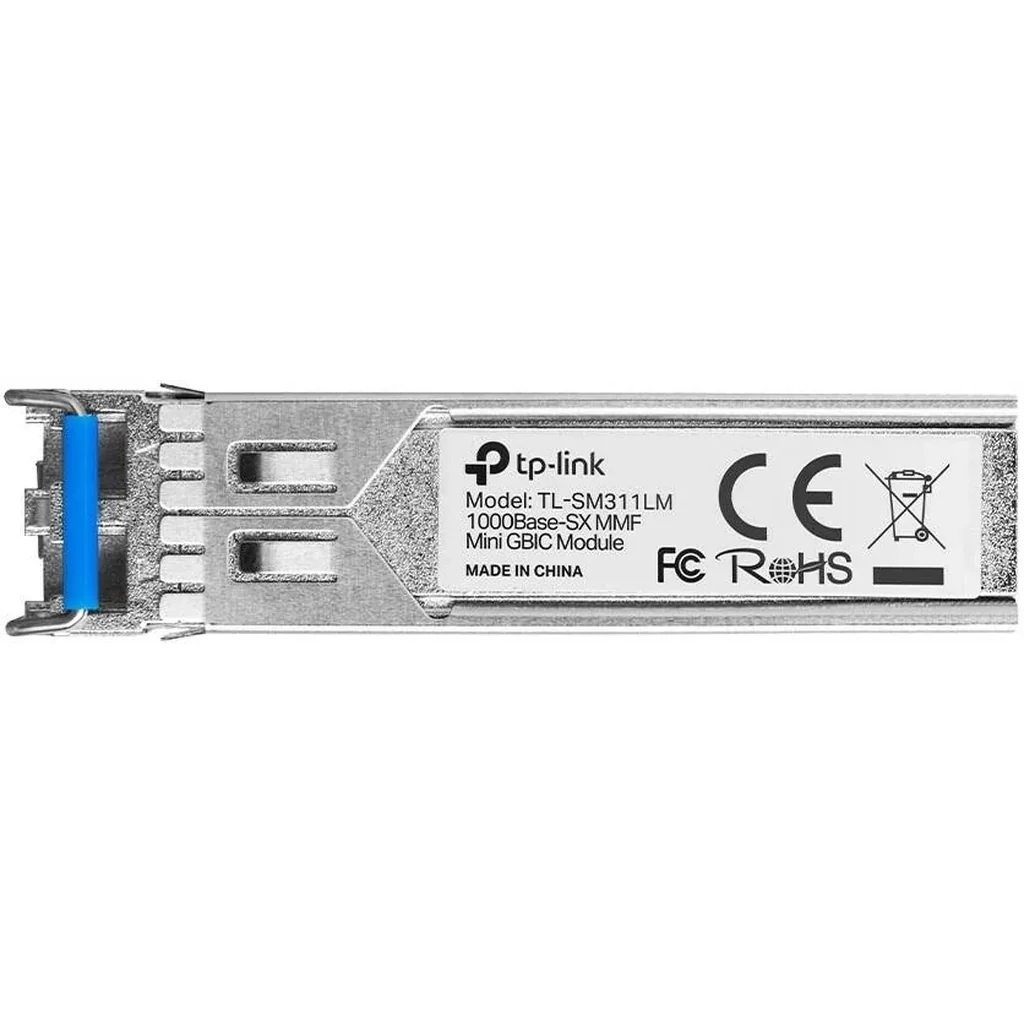

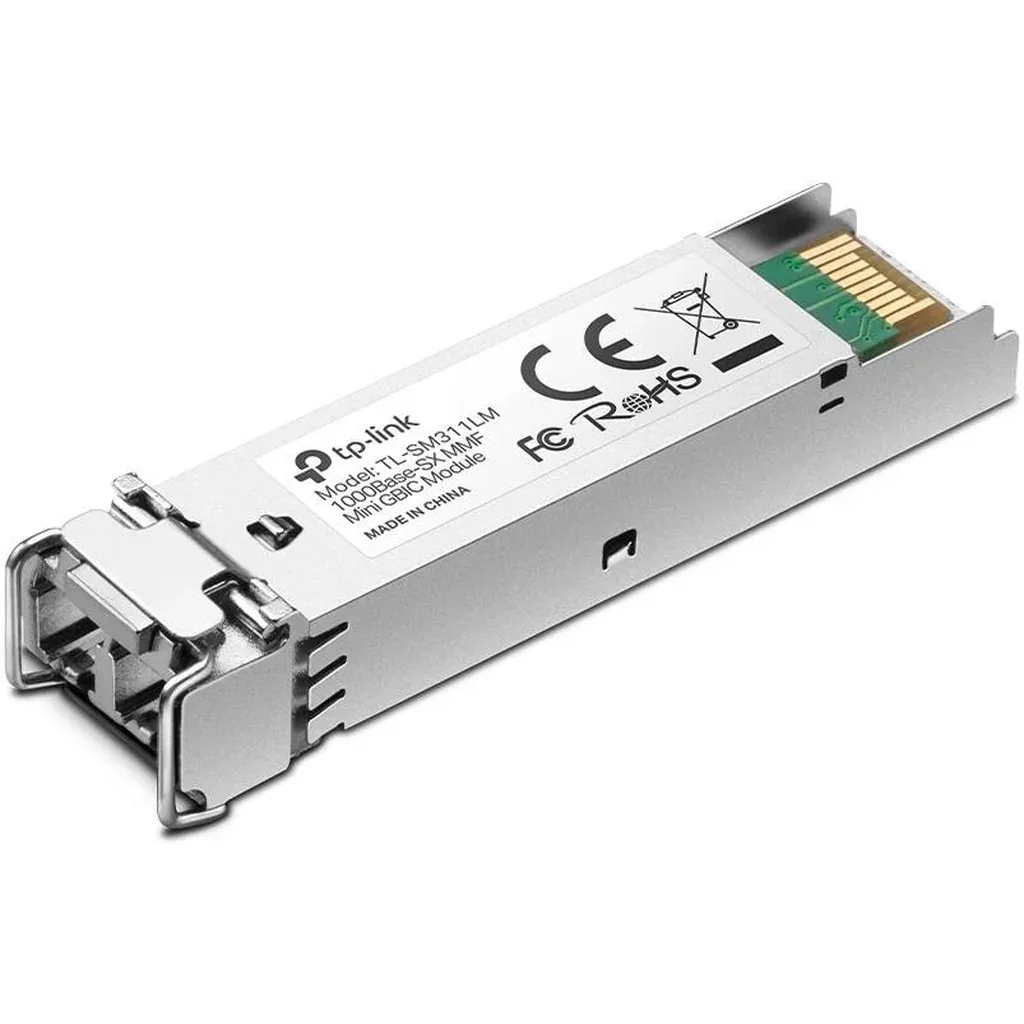

TL-SM311LM
MiniGBIC Module
What This Product Does
The TL-SM311 series Fiber Module Cards are introduced for extending transfer distance. Attached to our managed/smart switches, they can extend the distance to several kilometers even tens of kilometers which can basically satisfy the distance requirement of LAN. Users can choose whether and which items to use the fiber modules according to the demand in order to lower cost.
Specifications
| PACKAGE CONTENTS | |
| Package Contents | SFP Module TL-SM311LM |
| Installation Guide | |
| MEDIA CONVERTER & MODULE | |
| Standards and Protocols | IEEE 802.3z, CSMA/CD, TCP/IP |
| Wave Length | 850nm |
| Dimensions (WDH) | 2.2*0.5*0.5 in (55.413.712.9 mm) |
| Power Supply | 3.3V |
| Safety & Emission | FCC, CE |
| Cable | Multi-mode Fiber |
| Fiber Type | 50/125μm or 62.5/125μm Multi-mode |
| Max. Cable Length | 550m |
| Data Rate | 1.25Gbps |
| Port Type | LC/UPC |
| Environment | |
| Operating Temperature | 0℃~70℃ (32℉~158℉) |
| Storage Temperature | -40℃~80℃ (-40℉~176℉) |
| Operating Humidity | 10%~90% non-condensing |
| Storage Humidity | 5%~90% non-condensing |
